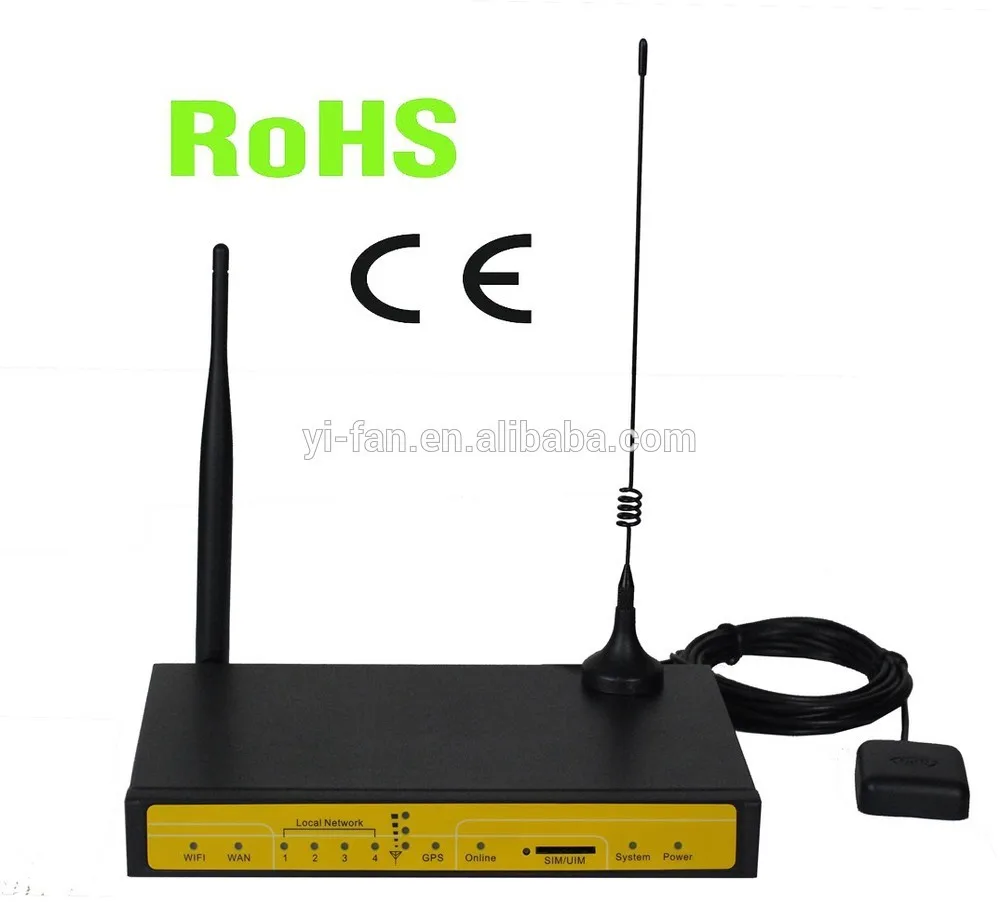

F7436 HSPA 3G GPS WIFI ROUTER TECHNICAL SPECIFICATION
Product Feature --------------------------------------------------------------------------------------------
Design for Industrial Application
u High-powered industrial cellular module
u High-powered industrial 32bits CPU
u High-powered industrial GPS module
u Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
u Housing: iron, providing IP30 protection
u Power range: DC 5~35V
Stability and Reliability
u Support hardware and software WDT
u Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
u Ethernet port: 1.5KV magnetic isolation protection
u RS232/RS485/RS422 port: 15KV ESD protection
u SIM/UIM port: 15KV ESD protection
u Power port: reverse-voltage and overvoltage protection
u Antenna port: lightning protection(optional)
Standard and Convenience
u Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
u Support standard WAN port and PPPOE protocol that can connect to ADSL directly
u Support intellectual mode, enter into communication state automatically when powered
u Provide management software for remote management
u Support several work modes
u Convenient configuration and maintenance interface(WEB or CLI)
Main Features
1. Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.
2. Support GPS function
3. Support double link backup between WCDMA and WAN(PPPOE, ADSL) (optional)
4. Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
5. Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
6. Support local and remote firmware upgrade,import and export configure file.
7. Support NTP, RTC embedded.
8. Support mulitiple DDNS provider service.
9. Support VLANs, MAC Address clone, PPPoE Server
10.WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.
11.WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.
12.Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
13.Support APN/VPDN
14.Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link
speed statistics etc.
15.Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP,
SSHD, etc.
16.Schedule Reboot, Schedule Online and Offline,etc.
Wireless Specification
Item | Content |
Cellular Module | Industrial cellular module |
Standard and Band | UMTS/WCDMA/HSDPA/HSUPA 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/WCDMA/HSDPA/HSUPA CLASS 12 |
Bandwidth | HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL) |
TX power | <24dBm |
RX sensitivity | <-109dBm |
| WIFI Specification | Standard | IEEE802.11b/g, IEEE802.11n (optional) | |||||
| Bandwidth | IEEE802.11b/g: 54Mbps (max), IEEE802.11n: 300Mbps (max) | ||||||
| Security | WEP, WPA, WPA2, etc. WPS (optional) | ||||||
| TX power | 16-17dBm(11g), 18-20dBm(11b) | ||||||
| RX sensitivity | <-72dBm@54Mpbs | ||||||
| GPS Specification | GPS Module | Industrial GPS module | |||||
| Receiver Type | 50-channle GPS L1(1575.42MHz)C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN Support GALILEO | ||||||
| Max.update rate | 4 Hz | ||||||
| Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE | ||||||
| Acquisition | Cold starts: 29S Warm starts: 29S Aided starts: <1S Hot starts: <1S | ||||||
| Sensitivity | Tracking & Navigation:-160dBm Reacquisition:-160dBm Cold Start(Autonomous):-144dBm | ||||||
| Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns | ||||||
| Time pulse | Configurable, 0.25 to 1000Hz | ||||||
| Hardware System | CPU | Industrial 32bits CPU | |||||
| FLASH | 16MB | ||||||
| DDR2 | 128MB | ||||||
| Interface Type | WAN | 1x10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |||||
| LAN | 4x10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | ||||||
| Serial | 1xRS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps | ||||||
| Indicator | "Power", "System", "Online", "GPS", " Local Network ", "WAN", "WIFI" "Signal Strength" | ||||||
| Antenna | Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) GPS: Standard SMA female interface, 50 ohm, lighting protection(optional) | ||||||
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | ||||||
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection | ||||||
| Reset | Restore the router to its original factory default settings | ||||||
| | |||||||
| Power Input | Standard Power | DC 12V/1.5A | |||||
| Power Range | DC 5~35V | ||||||
| Consumption | <450mA (12V) | ||||||
| Physical Characteristics | Housing | Iron, providing IP30 protection | |||||
| Dimensions | 206x135x28 mm | ||||||
| Weight | 795g | ||||||
