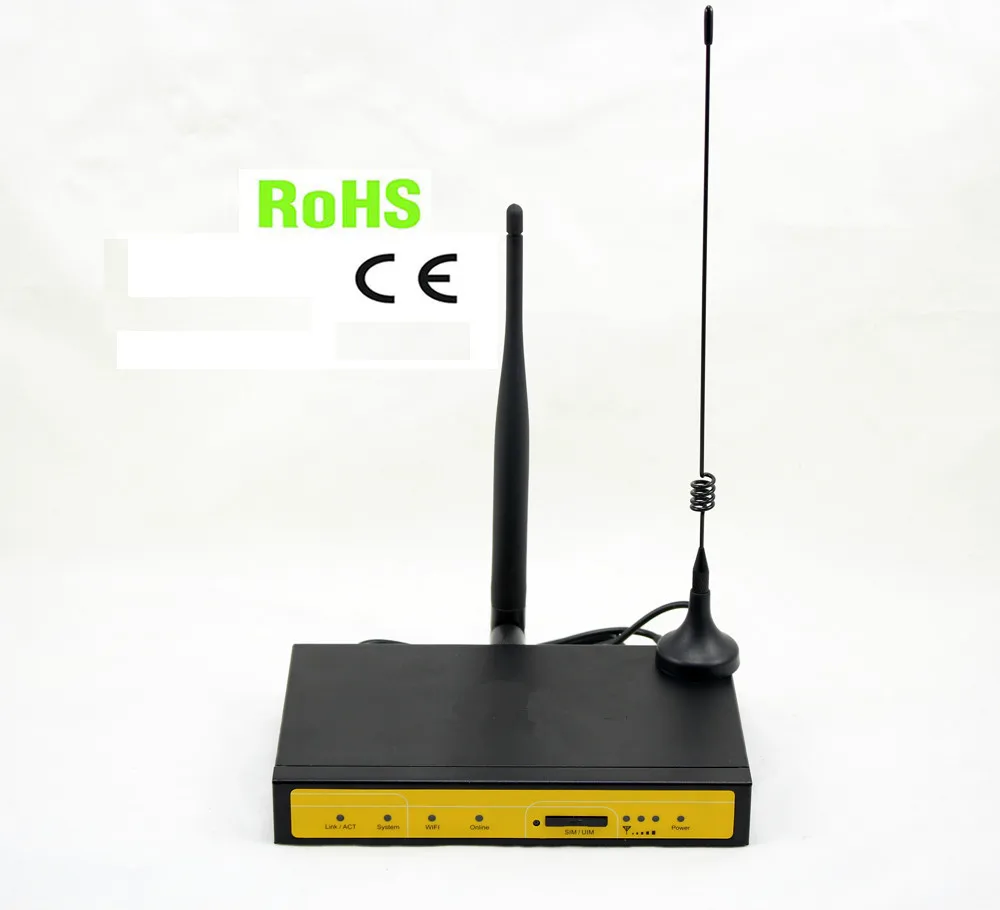

F3424 VPN Router F3424 industrial level 3g wifi router

F3424 WCDMA WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public WCDMA network.

It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.

It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Model No.	F3124	F3224	F3324	F3424	F3524	F3624	F3824
Wireless Network	GPRS	CDMA	EDGE	UMTS/WCDMA/ HSPA/HSPA+	TD-SCDMA	CDMA2000 1X EVDO	LTE
Main Features	1. Support multiple WAN access methods, including static ip, DHCP,PPPOE, 3G/UMTS/4G/LTE,dhcp-4G. 2. Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL) (optional) 3. Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version) 4. Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version) 5. Support NTP, RTC embedded. 6. Support multiple DDNS provider service. 7. Support MAC Address clone, PPPoE Server 8. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout 9. Support APN/VPDN 10. Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc. 11. Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc. 12. Schedule Reboot, Schedule Online and Offline,etc. 13. Support local and remote firmware upgrade,import and export configure file. 14. WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode. 15. WIFI support WEP,WPA,WPA2, encryption,Support MAC address filter. 16. Support VLANs, MAC Address clone,
Hardware System	CPU	Industrial 32bits CPU
	FLASH	8MB(Extendable to 64MB)
	RAM	64MB
Interface Type	LAN	1x10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
	Serial	1xRS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
	Indicator	"Power", "System", "Online", "Link/ACT", "WIFI", “Signal Strength”
	Antenna	Cellular: Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional)
	SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
	Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
	Reset	Restore the router to its original factory default settings
Power Input	Standard Power	DC 12V/1.5A
	Power Range	DC 5~35V
	Consumption	<450mA (12V)
Physical Characteristics	Housing	Iron, providing IP30 protection
	Dimensions	157x97x25 mm
	Weight	440g
Environmental Limits	Operating Temperature	-35~+75ºC(-31~+167°F)
	Storage Temperature	-40~+85ºC(-40~+185°F)
	Operating Humidity	95% ( Non-condensing)

Cellular Specification

Cellular Module	Industrial cellular module
Cellular Module	Industrial cellular module
Standard and Band	UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12
Bandwidth	HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed)
TX power	<24dBm
RX sensitivity	<-109dBm

WIFI Specification

Item	Content
Standard	IEEE802.11b/g/n
Bandwidth	IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max)
Security	WEP, WPA, WPA2, etc. WPS (optional)
TX power	20dBm(11n),24dBm(11g),26dBm(11b)
RX sensitivity	<-72dBm@54Mpbs

Pictures:

Installation Picture:
