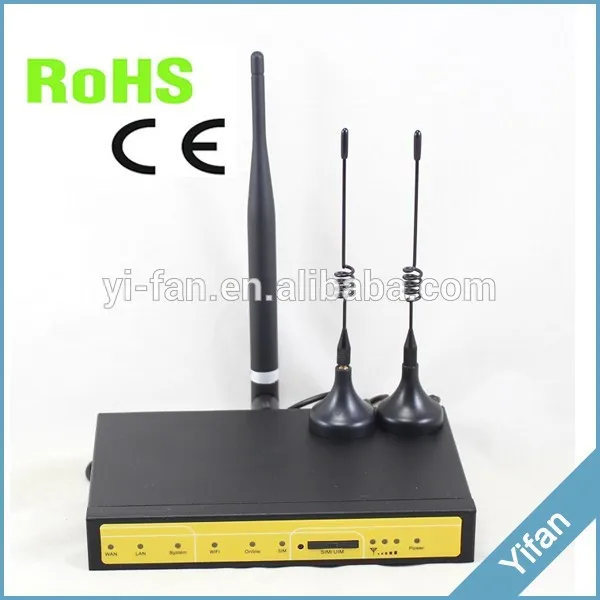

F3826 industrial 4g LTE wireless router with sim card slot
F3826 LTE&WCDMA WIFI ROUTER is a kind of cellular terminal device that provides large data transfer function by public LTE&WCDMA network.
It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as self-service terminal industry, intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Main Features
1. Support multiple WAN access methods, including static ip, DHCP,PPPOE, 3G/UMTS/4G/LTE,dhcp-4G.
2. Support double link backup between LTE&WCDMA and WAN(PPPOE, ADSL) (optional)
3. Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
4. Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
5. Support NTP, RTC embedded.
6. Support multiple DDNS provider service.
7. Support MAC Address clone, PPPoE Server
8. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
9. Support APN/VPDN
10. Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
11. Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
12. Schedule Reboot, Schedule Online and Offline,etc.
13. Support local and remote firmware upgrade,import and export configure file.
14. WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.
15. WIFI support WEP,WPA,WPA2, encryption,Support MAC address filter.
16. Support VLANs, MAC Address clone
Hardware System
| Item | Content |
| CPU | Industrial 32bits CPU |
| FLASH | 16MB(Extendable to 64MB) |
| DDR2 | 128MB |
Interface type
| Item | Content |
| WAN/LAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN | 1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
| Indicator | "WAN", "LAN", "System", "WIFI", " Online ", "SIM", "Signal Strength", "Power" |
| Antenna | Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
| | |
Power supply
| Item | Content |
| Standard Power | DC 12V/1.5A |
| Power range | DC 5~36V |
| Consumption | <500mA (12V) |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 157x97x25 mm |
| Weight | 440g |
Environmental Limits
| Item | Content |
| Operating Temperature | -35~+75ºC(-31~+167F) |
| Storage Temperature | -40~+85ºC (-40~+185F) |
| Operating Humidity | 95% ( unfreezing) |
Cellular Specification
| Cellular Module | Industrial cellular module |
| Standard and Band | Support:LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20), 700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) Support:DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) Support: EDGE/GPRS/GSM 850/900/1800/1900MHz |
| Bandwidth | LTE FDD(Download speed:100Mbps, upload speed:50Mbps) /HSUPA:5.76Mbps(upload speed)/ HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) |
| TX power | <23dBm |
| RX sensitivity | <-93.3dBm |
WIFI Specification
| Item | Content |
| Standard | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| TX power | 20dBm(11n),24dBm(11g),26dBm(11b) |
| RX sensitivity | <-72dBm@54Mpbs |
Installation Picture:
