Computer Hot Seller Peripheral Component Parts provide Fan Cooler,Component Parts 2018 Deals support VPN F3446 3G dual sim wifi router with external antenna. Price at this time US $269.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Yifan Industry Ltd. Trusted Seller Store!
Affordable cost and totally free shipping. Let's get Clearance 2018 Deals support VPN F3446 3G dual sim wifi router with external antenna prior to costs climb.

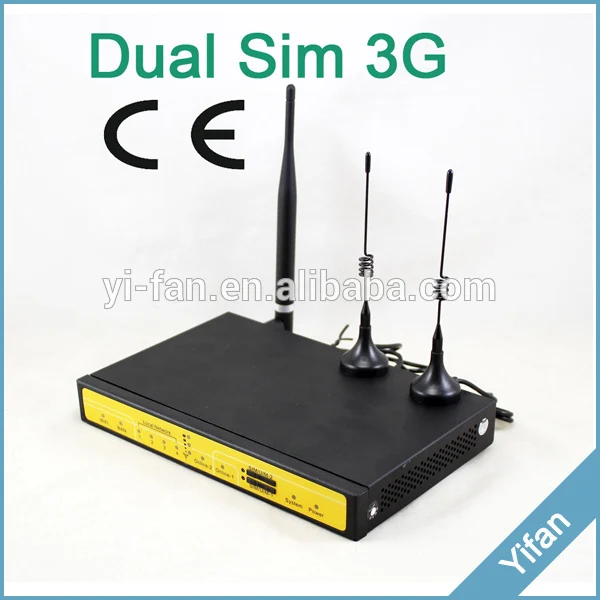

-F3446 3G DUAL SIM WIFI ROUTER TECHNICA SPECIFICATION
F3446 WCDMA/WCDMA dual SIM ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network. And it supports double link backup between WCDMA and WCDMA.
It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection and so on.
Main Features
1. Support master card and smart card double link switching function
2. Support double link backup between WWAN and WAN(PPPOE, ADSL) (optional)
3. Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA.
4. Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
5. Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
6. Support local and remote firmware upgrade,import and export configure file.
7. Support NTP, RTC embedded.
8. Support mulitiple DDNS provider service.
9. Support VLANs, MAC Address clone, PPPoE Server
10. WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.
11. WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.
12. Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
13. Support APN/VPDN
14. Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed
statistics etc.
15. Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
16. Schedule Reboot, Schedule Online and Offline,etc.
Cellular Specification
| Cellular Module | Industrial cellular module |
| Standard and Band | UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 |
| Bandwidth | HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) 5.76Mbps(Upload speed) |
| TX power | <24dBm |
| RX sensitivity | <-109dBm |
WIFI Specification
| Item | Content |
| Standard | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| TX power | 21.5dBm 11g , 26dBm 11b |
| RX sensitivity | <-72dBm@54Mpbs |
Hardware System
| Item | Content |
| CPU | Industrial 32bits CPU |
| FLASH | 16MB(Extendable to 64MB) |
| DDR2 | 128MB |
Interface type
| Item | Content |
| WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN | 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
| Indicator | "Power", "System", "Online-1", "Online-2", " Local Network ", "WAN", "WIFI", ” Signal Strength”. |
| Antenna | Cellular: standard SMA female interfaces, 50 ohm, lighting protection(optional) WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | 2 standard 3V/1.8V user card interfaces, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
| | |
Power supply
| Item | Content |
| Standard Power | DC 12V/1.5A |
| Power range | DC 5~36V |
| Consumption | <500mA (12V) |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 805g |
Environmental Limits
| Item | Content |
| Operating Temperature | -35~+75ºC |
| Storage Temperature | -40~+85ºC |
| Operating Humidity | 95% ( unfreezing) |
On-Site Pictures
