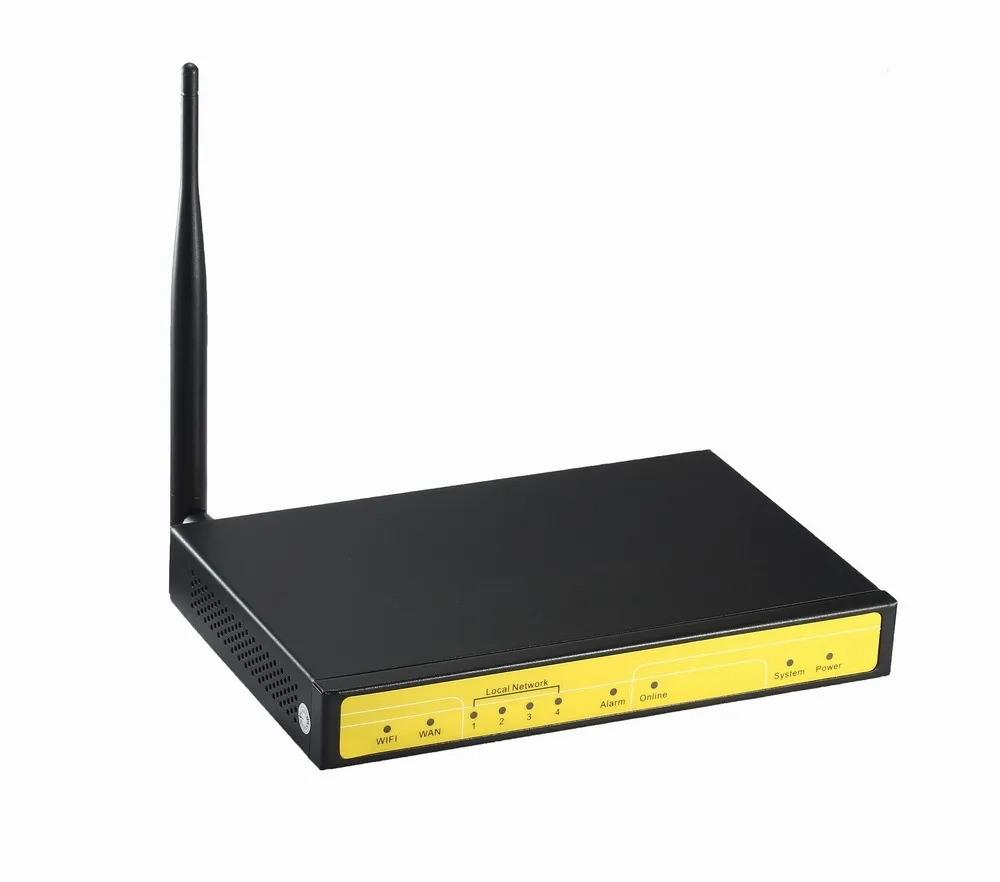

F5934 WIFI ROUTER TECHNICAL SPECIFICATION
General:
| F5934 ROUTER is a kind of cellular terminal device that provides data transmission function by public network. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect devices to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. |
Main Features:
u Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE
u Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
u Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
u Support local and remote firmware upgrade,import and export configure file.
u Support NTP, RTC embedded.
u Support mulitiple DDNS provider service.
u Support VLANs, MAC Address clone, PPPoE Server
u WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.
u WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.
u Support APN/VPDN
u Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
u Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
u Schedule Reboot, Schedule Online and Offline,etc.
| Cellular Specification |
WIFI Specification
| Item | Content |
| Standard | IEEE802.11b/g/n |
| Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| TX power | 21.5dBm(11g), 26dBm(11b) |
| RX sensitivity | <-72dBm@54Mpbs |
Hardware System
| Item | Content |
| CPU | Industrial 32bits CPU |
| FLASH | 8MB(Extendable to 64MB) |
| SDRAM | 64MB |
Interface type
| Item | Content |
| WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN | 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
| Indicator | "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WLAN" |
| Antenna | WIFI: Standard SMA male interface, 50 ohm, lighting protection(optional) |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
| USB | Standard A type USB host interface (reserved) |
| | |
Power supply
| Item | Content |
| Standard Power | DC 12V/1.5A |
| Power range | DC 5~35V |
| Consumption | <450mA (12V) |
Physical Characteristics
| Item | Content |
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 790g |
Environmental Limits
| Item | Content |
| Operating Temperature | -35~+75ºC-31~+167F) |
| Storage Temperature | -40~+85ºC (-40~+185F) |
| Operating Humidity | 95% ( unfreezing) |
