Computer Hot Seller Peripheral Component Parts provide Game Console,Component Parts,Mouse Hot Flash Deal KuWfi Indoor Wireless Router 300Mbps Ceiling AP Router 2.4Ghz WiFi Access Point AP for Hotel 24V POE WI-FI Signal Amplifier. Get Discount Now! Only US $28.80/piece at this time. Hurry buy Now before back to normal price! Normal price US $59.99 or you can Check price now. Dont waste your time. Buy Now only in HuaXuFeng Wireless Networking Store Trusted Seller Store!
Inexpensive cost and cost-free delivery. Let's acquire prior to costs rise.
Quality items guarantee your life extra comfy when utilizing it. If you are interested to buy it, you can directly contact the sales to get more information concerning this quality product.
Features and Benefits
- Ceiling-mount design blends into environments
- 5-8Hotel Coverage range to 300meters
- Multi Working Modes: Access Point / AP Client /Gateway / WISP
- 500mw High Power design to boost your signal coverage and link speed
- 24V Power over Ethernet for 70 meters flexible deployment
- Gateway/AP/Repeater/WDS/WISP Mode supported
- High output transmission power and reception sensitivity optimized
- Supports Wireless Distribution System (WDS)
- Supports Ping Watch Dog, Remote Management
Description:

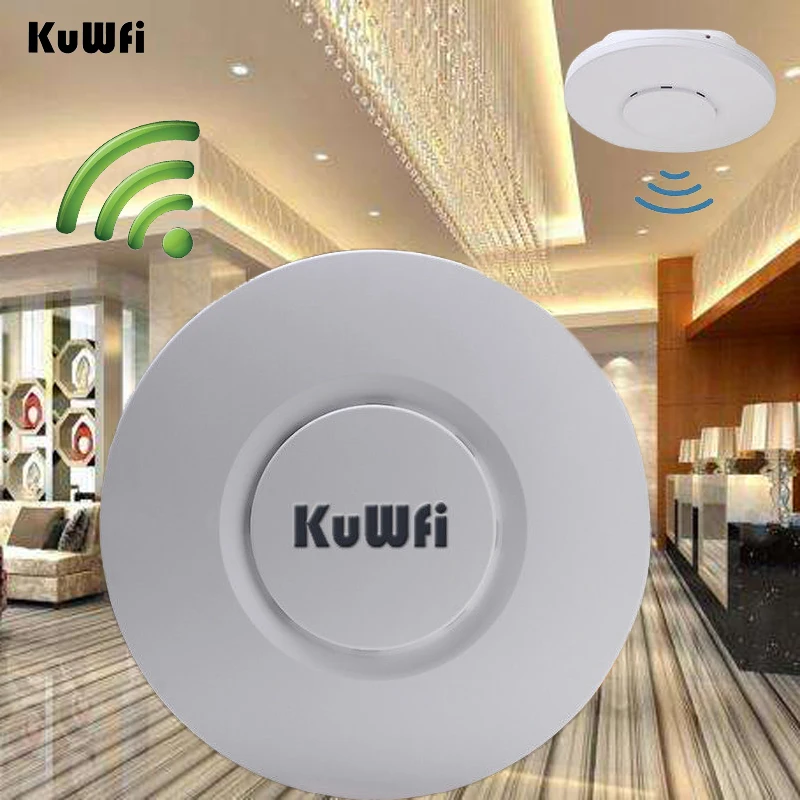

XD9300Qis smart type indoor ceiling access point, it designed for home environment or business-class, such as hotels, coffee house, shops, university campus...
With 2T2R 2.4G MINO technology, the data rate can be 300Mbps, max 32 users access into together.
With the aesthetic ceiling design, XD9300Q can be deployed easily on ceiling or in crawlspaces.
Integrated 802.3af Power over Ethernet (PoE) allows installation in areas where power outlets are not readily available.
Main Features300Mbps high speed:
Compliant with IEEE 802.11b/g/n, providing fast speed 300Mbps on 2.4G frequency, which make files transferring faster and video streaming smoother.Just enjoy yourself and link your world by this wireless device.
Power Over Etherne
The PoE port on the back panel allows both power and data to be carried over a single Ethernet cable to XD9308Q with the PoE adapter or PoE switch. It make XD9308Qcan be deployed in area where power outlets are scarce or not available.
Multi Operation mode to meet with different requirement
It with Wireless Access Point, Router and wifi repeater operation mode, can be used for wifi coverage, home router or extend the exist wifi signal.
Support Tag VLAN, AC Controller and Cloud Server
XD9300Q work with VLAN switch, make different SSID with different VLAN for networking safty.
Besides that, it work with AC controller for easy configuration and central management.
Then if required, this wireless AP can access into cloud server for remote management, advertisement, portal authentication, which more professional in business environment application.
Product SPEC | |||
Hardware | |||
Chipset | Qualcomm QCA9531 | ||
Standard | 802.11N, 2T2R 300M MIMO Technology | ||
SDRAM | 64MB | ||
Flash | 8MB | ||
Interface | 1*10/100 Mbps RJ45 Port, 24V PoE Support | ||
1*Reset Button, rest to default | |||
Size | 15.7*3.6cm | ||
Antenna | 2.4G MIMO OMNI antenna, 3dBi | ||
Power | POE 24V | ||
RF Data | |||
Frequency | 802.11b/g/n: | ||
2.4~2.4835GHz | |||
U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |||
Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||
DSSS = DBPSK, DQPSK, CCK | |||
Throughput | 300 Mbps | ||
Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
-92dBm @ MCS0 | - 92dBm @ 6Mbps | - 95dBm @ 1Mbps | |
-70dBm @ MCS7 | - 72dBm @ 54Mbps | - 90dBm @ 11Mbps | |
-92dBm @ MCS8 | |||
-70dBm @ MCS15 | |||
Output Power | Radio1(WLAN1) | ||
802.11n(2.4GHz)(± 1.5dBm) | 802.11g(± 1.5dBm) | 802.11b(±1.5dBm) | |
25dBm@ MCS0~2/MCS8~10 | 25dBm @ 6~24Mbps | 25dBm @1~11Mbps | |
25dBm @ MCS3/MCS11 | 24dBm @ 36Mbps | ||
24dBm @ MCS4/MCS12 | 23dBm @ 48Mbps | ||
23dBm @ MCS5/MCS13 | 23dBm @ 54Mbps | ||
23dBm @ MCS6/MCS14 | |||
22dBm @ MCS7/MCS15 | |||
Software | |
Operation Mode | Gateway/AP/Repeater |
Protocol/Standard | IEEE 802.3(Ethernet) |
IEEE 802.3u(Fast Ethernet) | |
IEEE 802.11b/g/n(2.4G WLAN) | |
Wireless | Auto-Channel selection |
Distance Control (802.1x Ack timeout) | |
Multiple SSID up to 4 | |
BSSID | |
Security | WEP Encryption-64/128/152 bit |
WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |
WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |
Hide SSID | |
Package content:
1*Ceiling AP
1* 24V POE Adapter(EU/UK/US Plug available,AU conventer plug available)
1*User manual
