Big Promo 3X3 Mimo Wifi Usb/Uart/I2C/Sd Card/I2S/Pcm/Pwm/Wan/Lan Mediatek Mt7628An 11N Mode Router Extender High Speed Pro Ac Wifi Module

Big Promo 3X3 Mimo Wifi Usb/Uart/I2C/Sd Card/I2S/Pcm/Pwm/Wan/Lan Mediatek Mt7628An 11N Mode Router Extender High Speed Pro Ac Wifi Module computers hot seller Rating: 4.0 out of 5

Computer Hot Seller Peripheral Component Parts provide Game Console,Component Parts Big Promo 3X3 Mimo Wifi Usb/Uart/I2C/Sd Card/I2S/Pcm/Pwm/Wan/Lan Mediatek Mt7628An 11N Mode Router Extender High Speed Pro Ac Wifi Module. Price at this time US $30.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in SKYLAB Technology Co.,Ltd. Trusted Seller Store!

This Flash Deal Big Promo 3X3 Mimo Wifi Usb/Uart/I2C/Sd Card/I2S/Pcm/Pwm/Wan/Lan Mediatek Mt7628An 11N Mode Router Extender High Speed Pro Ac Wifi Module item has a high quality. very easy to easy and clean to utilize. Read the individual guide that you can use it ideally. If you have an individual restrictions, constantly ask the seller. This product has an elegant design as well as make your life comfy.

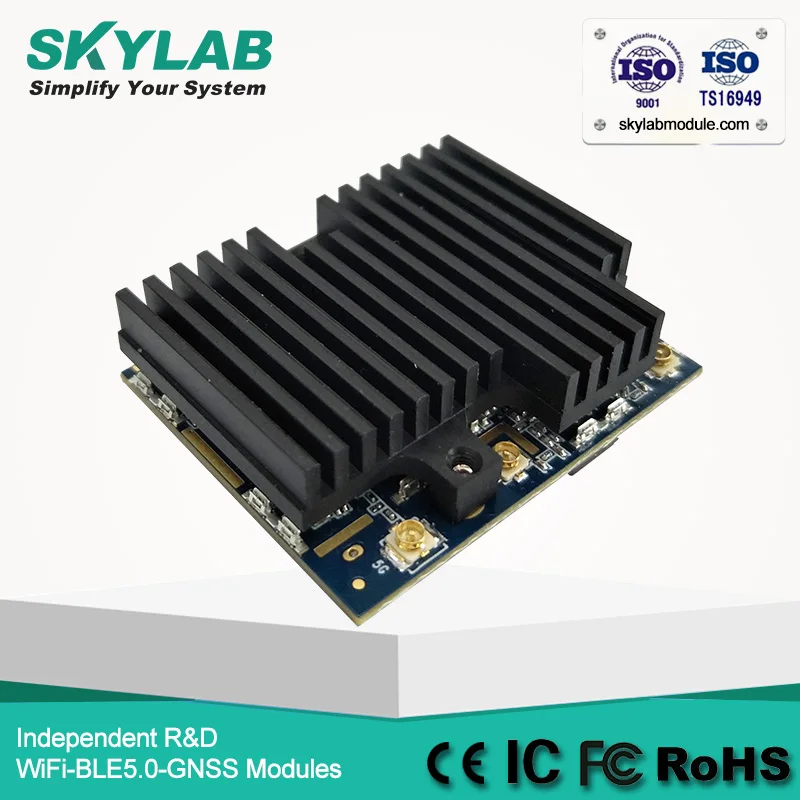

Name: 3X3 Mimo Wifi Usb/Uart/I2C/Sd Card/I2S/Pcm/Pwm/Wan/Lan Mediatek Mt7628An 11N Mode Router Extender High Speed Pro Ac Wifi Module

Model No:SKW93A

The module SKW93A compliant to 802.11 a/b/g/n/ac Wi-Fi Solution ,it intergrates a dual-core MIPS1004Kc(580MHz), 3-port switch, USB2.0, SD-XC,I2C. The moudle is suitable for 802.11ac,LTE cat4/5,edge,hotspot,VPN,AC(Access control).For consumer electronic devices, the module requiring only a external 3.3V power supply. The moudle integrates a 2.4 GHz 2x2 MIMO WLAN chip with internal PA and integrates a 5 GHz 1x1 WLAN chip with internal PA and LNA.It supports 2.4 GHz operations up to 144 Mbps for 20MHz and 300 Mbps for 40MHz channel respectively, and supports 5 GHz operations up to 433 Mbps for 80 MHz channel respectively

The module support AP mode and client mode and router mode

Compliant to IEEE 802.11 a/b/g/n/ac

3T3R Mode with support for a 733Mbps PHY data rate.

DDR2 memory up to 1024Mb

Flash memory up to 256Mb

2LAN ports and 1 WAN port

Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera.

Support SD card

Support interface: I2C,PCM,I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO

Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI

Support AP/Client/Router mode

RoHS compliance meets environment-friendly requirement.

Dimension: 36.4(L) x 30.5(W) x 14.8(H) mm

RoHS compliant(Lead -free)

Manufactured in ISO9001:2008, TS16949 certified production sites
