US Store 300Mbps In Wall Wireless Router Access Point Control System Wifi Repeater Wifi Extender AP Router With Phone Port&RJ45
This router send from the USA Store.
Only Sale to the USA . and it just need 1-2days can arrival in the USA.

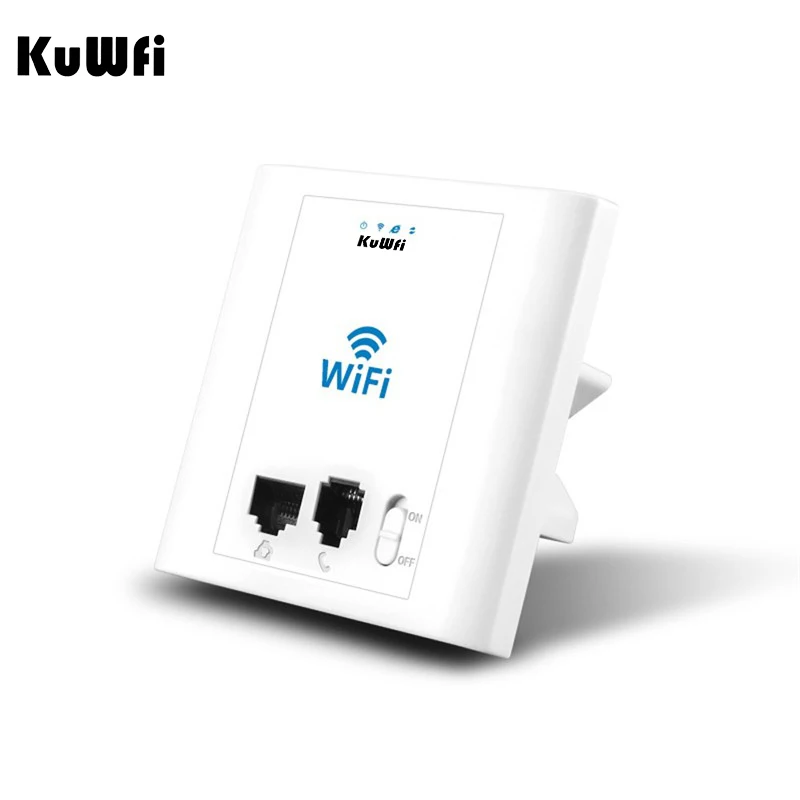

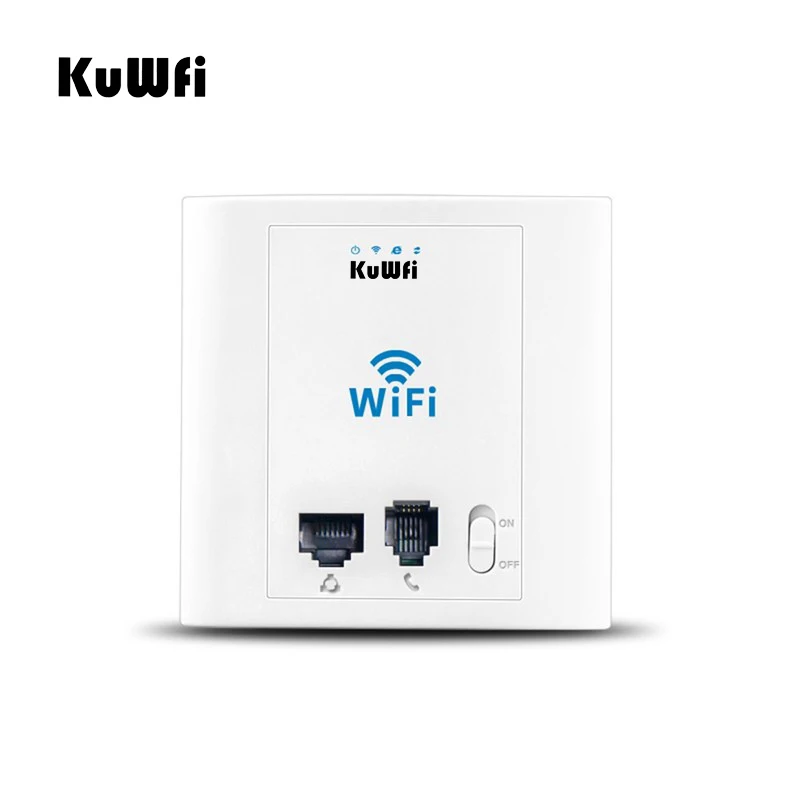

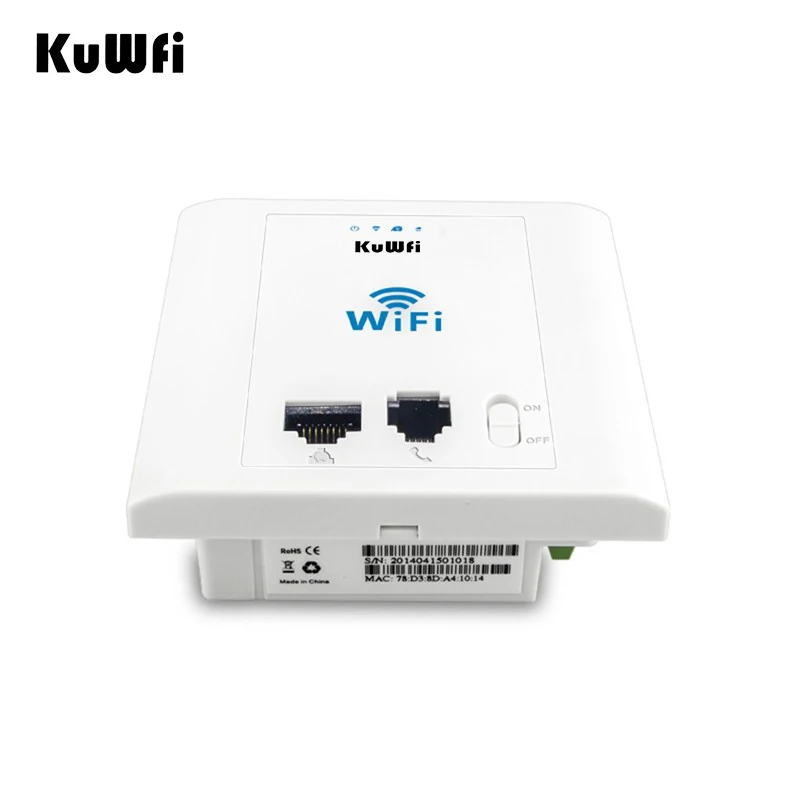

SR-9501 in wall AP is designed for hotel or home use mainly. Based on MIMO technology, it offers a maximum wireless signal rate of up to 300Mbps. Designed with in wall, the router is small in size yet huge in functionality:
1. Work as a WiFi Repeater, it is easy to bridge and extend the existing WiFi hotspot to cover a farther range, just press the WPS button to comply, enjoy full wireless in each corner even big house.
2. Work as a AP Router, it can auto-detect your internet connection type and intelligently switch between hotel mode(Dynamic IP) and Residence Mode(PPPoE). Make businessmen more easy to share the WiFi even in travel.
3.With 802.3af PoE standard, it can work with PoE switch, easy to power and set it.
4.With 802.1Q VLAN function, can easy to manage it after match with VLAN switch
5. With Access Controller system

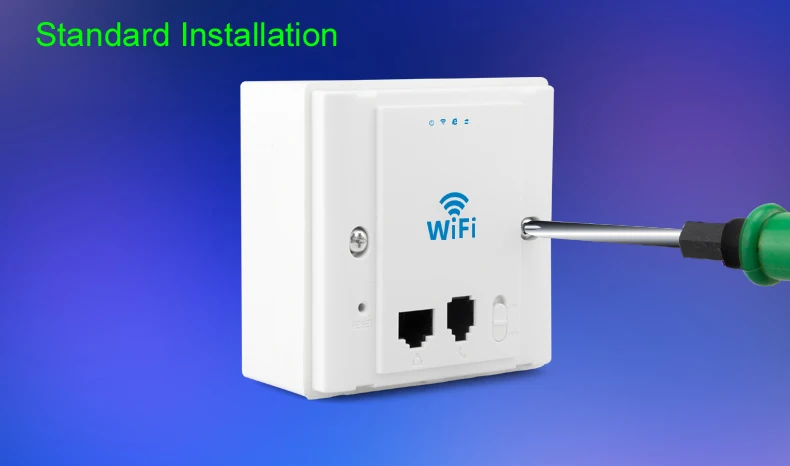

In wall design, match with the cassette with size of 86mm, easy to complete the hotel WiFi cover.
Compliant with IEEE 802.11n/g/n standard, 300Mbps in data rate, more faster in download, more freely in internet surf.

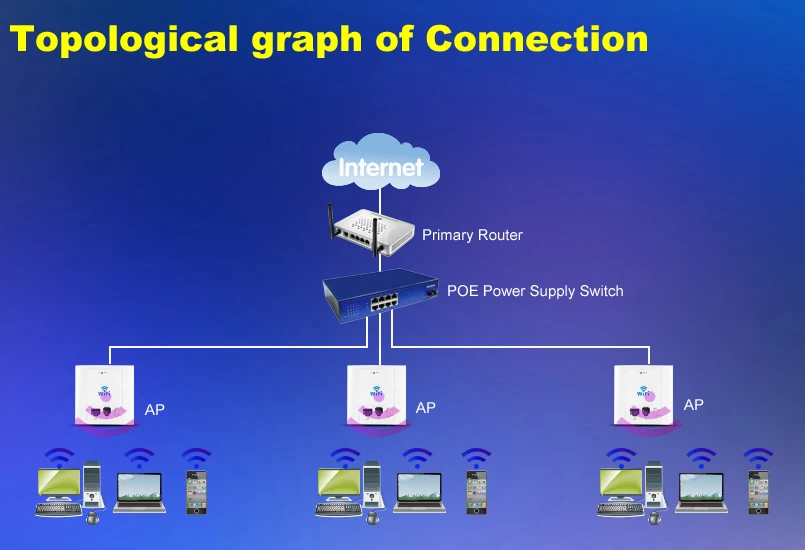

Support 802.3af 48V PoE, can be powered by any powered by any 802.3af Power over Ethernet equipment, easy in setting and complete the full wifi coverage.
Powerful Frequency band from 2.4GHz to 2.4835GHz.

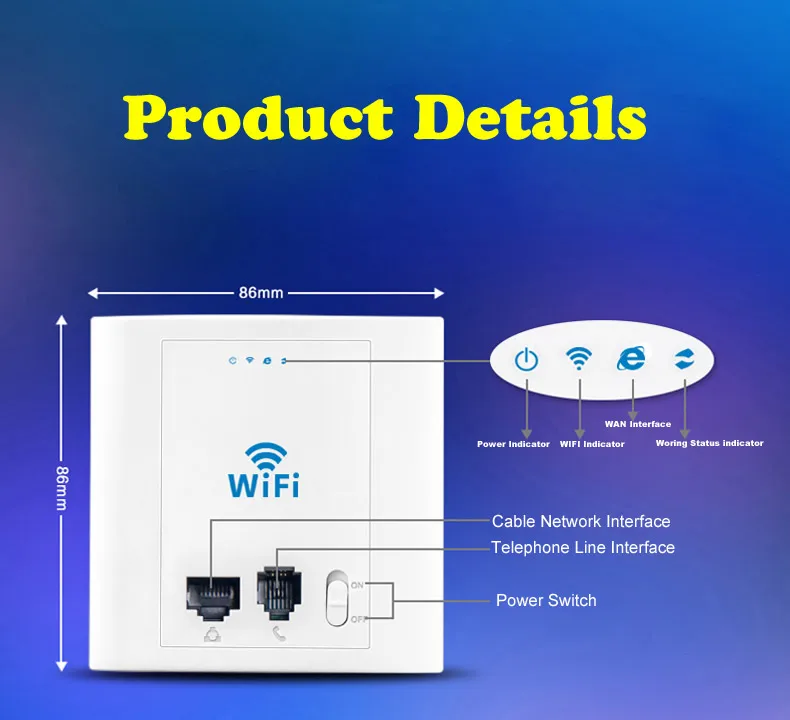

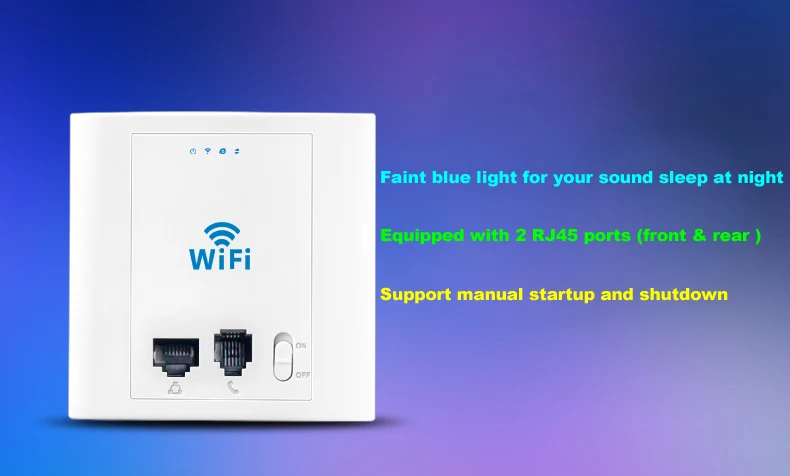

Equipped with 2 RJ45 ports, one on the front allowing wired access for guests and one on the rear for network service and power provision.

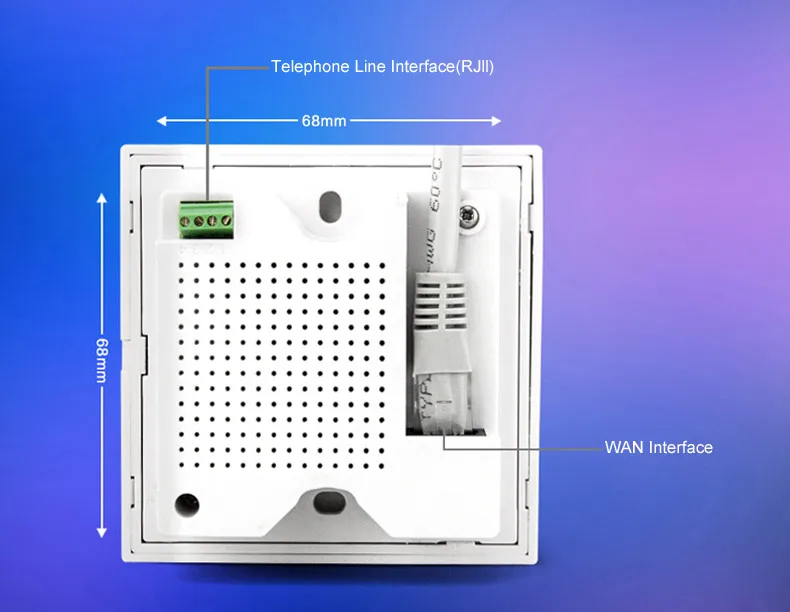

It also has an RJ11 pass through port on the front with screw terminals on the rear. The Rj11 port can be used for a telephone
Support 802.1Q VLAN manage and Access Controller System (ACS), the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time.
Muti SSID: PW300AP support 4 SSID, each SSID can be named and assigned to different users, then internet data is isolated.

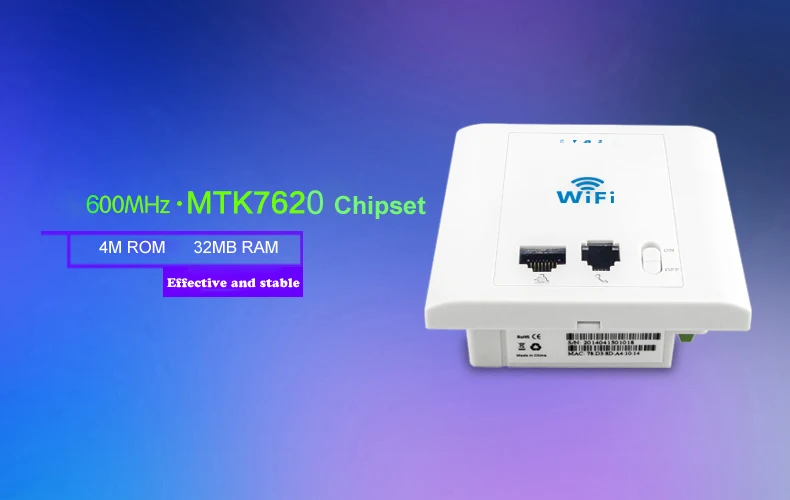

| MCU Chipset | MT7620N |
| RF | 2T2R |
| Memory | 32MB DDR RAM (can be extended to 64 MB) |
| Flash | 4MB (can be extended to 8 MB) |
| Interface | 2 * 100Mbps/ 10Mbps auto-negotiation ethernet LAN / WAN ports 1 * RJ11 port |
| Power | 48V / 0.5A( Standard 802.3af POE ) |
| Antenna | Internal 2dBi |
| Product size | 86 * 86 * 36mm / 3.4 * 3.4 * 1.4in |
| Product weight | 102g / 3.6oz |
| Wireless | |
| Wireless standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Speed | 11b: up to 11Mbps |
| 11g: up to 54Mbps | |
| 11n: up to 300Mbps | |
| Frequency | 2.4 ~ 2.4835GHz |
| Security | 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK |
| Channel | 1 ~ 13 |
Out Power | 802.11n: 15dBm for OFDM mode 802.11g: 17dBm for OFDM mode 802.11b: 20dBm for CCK mode |
| Modulation | OFDM = BPSK, QPSK, 16-QAM, 64-QAM |
| DSSS = DBPSK, DQPSK, CCK | |
Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER |
| Software | |
| Woke mode | Gateway / AP / Repeater |
| Wireless function | Auto-Channel selection Distance Control (802.1x Ack timeout) Multiple SSID (4 SSID) BSSID |
| Security | WEP Encryption-64/128/152 bit WPA/WPA2 Personal (WPA-PSK using TKIP or AES) WPA/WPA2 Enterprise (WPA-EAP using TKIP) Hide SSID |
| DHCP | DHCP Server, DHCP Client |
| Network | Port Mapping, DDNS, UPNP |
| Firewall | IP Address / Port / MAC / URL Filter / ANI-DoS |
| Management | Firmware upgrade and backup, factory reset, restart, WEB management |
| OS Support | Windows 7/Vista/XP/2000, Mac OS?, Linux or Android OS |
| Environment | |
| Operating temperature | 0°C~ 40°C(32°F~104°F) |
| Storage temperature | -40°C~ 70°C(-40°F~158°F) |
| Operating humidity | 10% ~ 90%, non-condensing |
| Storage humidity | 5% ~ 95%, non-condensing |
| Package | |
| Package size | 110 * 110 * 65mm / 4.3 * 4.3 * 2.6inch |
