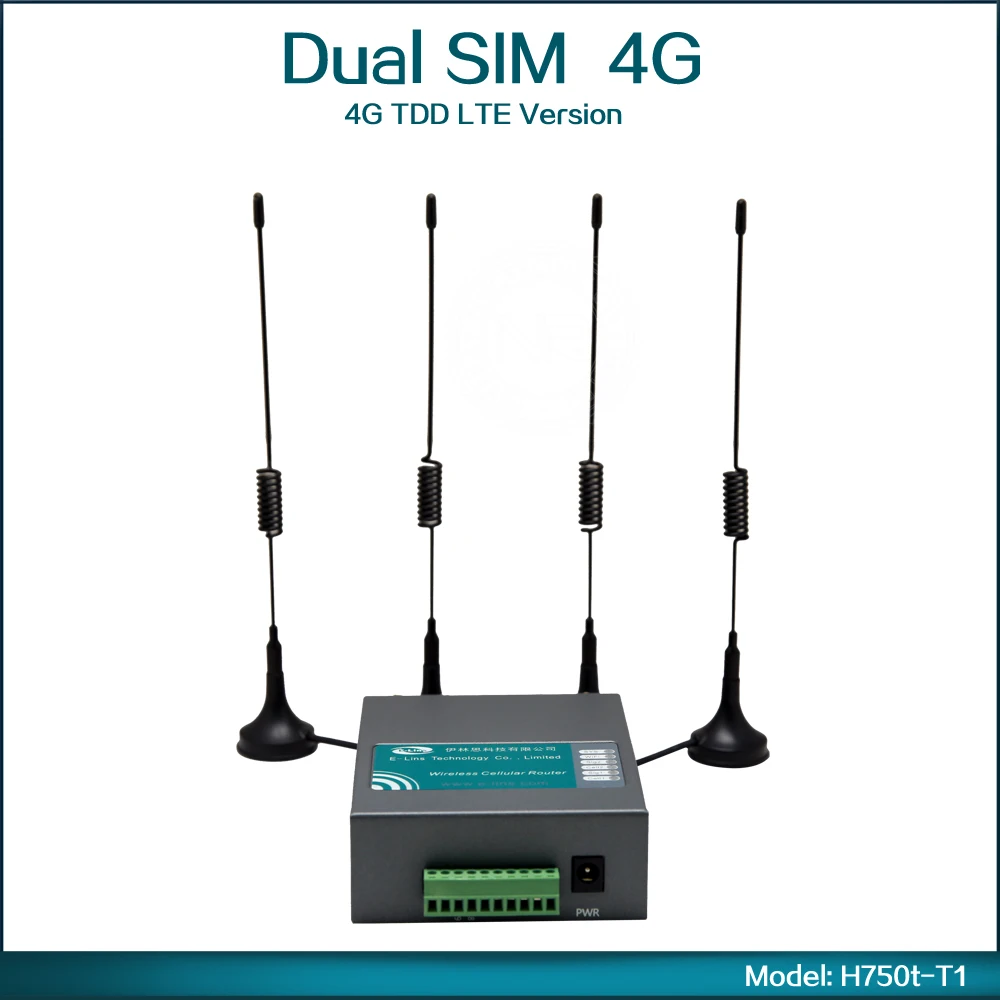

Super Gift 4G TDD LTE 2600/2300/1900 (B38/B39/B40+B7) Wireless Router 4G Wifi Router (Model: H750t-T1) computers hot seller Rating: 4.2 out of 5
Computer Hot Seller Peripheral Component Parts provide Networking Device,Mouse,Keyboard,Component Parts Super Gift 4G TDD LTE 2600/2300/1900 (B38/B39/B40+B7) Wireless Router 4G Wifi Router (Model: H750t-T1). Get Discount Now! Only US $328.10/piece at this time. Hurry buy Now before back to normal price! Normal price US $386.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Computer Hot Seller Peripheral Component Parts provide Networking Device,Mouse,Keyboard,Component Parts Super Gift 4G TDD LTE 2600/2300/1900 (B38/B39/B40+B7) Wireless Router 4G Wifi Router (Model: H750t-T1). Get Discount Now! Only US $328.10/piece at this time. Hurry buy Now before back to normal price! Normal price US $386.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
This page is for H750 series,which has Dual SIM and 1 WAN+3LAN RJ45 port. We also have another 4 kinds of router,please refer as below,if you need H685 router,please click H685,it will go to the specific URL.
| Series | SIM Card Slot | Ethernet Port |
| Single | LAN RJ45*1+WAN RJ45*1 or LAN RJ45*2 | |
| Dual | LAN RJ45*4+WAN RJ45*1 | |
| Dual | LAN RJ45*4+WAN RJ45*1 | |
| Single | LAN RJ45*1+WAN RJ45*1 or LAN RJ45*5 |
H750 Series Cellular Router
The H750 series Cellular Router is designed for establish a 2G/3G/4G cellular wireless network and share a cellular broadband internet connection. The H750 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the internet using a cellular network. By connect to cellular broadband network; an internet connection can be accessed and shared virtually anywhere within a wireless broadband network.
>>| Hot Spot for Dual SIM H750 series is with single module two sim cards 1. work with one sim card. 2. work with two sim card. Two sim card backup each other (cold standby for failure backup).Nine working modes: 1) SIM1 only 2) SIM2 only 3) SIM1 preferred 4) SIM2 preferred 5) Fail Switch SIM1 First 6) Fail Switch SIM2 First 7) Advance Data Traffic SIM1 First 8) Advance Data Traffic SIM2 First 9) Cell on time traffic Two sims can be any type from 2G/3G/4G at GPRS/EDGE/HSDPA/HSUPA/HSPA/HSPA+/LTE/CDMA1x/CDMA2000 EVDO. (Please confirm the type as below before order . If you need model H750p,please click H750p,it will go to the specific URL)| Version | Model | Specification |
| 3G WCDMA HSPA+ Version (Universal) | HSPA+/HSUPA/HSDPA/UMTS; EDGE/GPRS/GSM; Download Speed: 21Mbps; Upload Speed: 5.76Mbps | |
| 4G FDD LTE Version (for Europe, Asia ,Africa,Australia and South Amercia) | FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM; Download Speed: 150Mbps; Upload Speed: 50Mbps | |
| 4G FDD LTE Version (for North Amercia) | FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM; CDMA EVDO/1x: BC0, BC1, BC10 Download Speed: 100Mbps; Upload Speed: 50Mbps | |
| 4G FDD LTE Version (for Japan) | FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM; Download Speed: 100Mbps; Upload Speed: 50Mbps | |
| 4G TDD LTE Version | TDD LTE, LTE: 2600/2300/1900 (B38/B39/B40+B7); TD-SCDMA: 2010~2025MHz/1880~1920MHz (B34/B39), EDGE/GPRS/GSM: 1900/1800/900/850MHz; Download Speed: 100Mbps; Upload Speed: 50Mbps | |
| 4G TDD and FDD LTE Version | TDD LTE, FDD LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; TD-SCDMA; EDGE/GPRS/GSM; Download Speed: 150Mbps; Upload Speed: 50Mbps | |
| 4G TDD and FDD LTE Version | TDD LTE, FDD LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; TD-SCDMA; EDGE/GPRS/GSM; EVDO/CDMA; Download Speed: 100Mbps; Upload Speed: 50Mbps |
| 4G FDD LTE Version | FDD LTE, LTE; Download Speed: 100Mbps; Upload Speed: 50Mbps |
| 3G CDMA2000 EVDO Version | CDMA2000 EVDO/CDMA1x 800/1900Mhz networks Download Speed: 3.1Mbps; Upload Speed: 2.4Mbps |
| 3G CDMA2000 EVDO Version | CDMA2000 EVDO/CDMA1x 450Mhz networks Download Speed: 14.7Mbps; Upload Speed: 5.4Mbps |
| 3G TD-SCDMA Version | TD-SCDMA: 2010~2025MHz/1880~1920MHz (B34/B39),EDGE/GPRS/GSM: 1900/1800/900/850MHz; Download Speed: 2.8Mbps; Upload Speed: 2.8Mbps |
| Wireless | |
| Compatible Mobile Networks | UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+) |
| GSM EDGE/GPRS | |
| CDMA1x | |
| CDMA2000 EVDO Rev 0, Rev A, Rev B | |
| TD-SCDMA/TD-LTE | |
| 4G LTE (FDD/TDD) | |
| Interface | |
| LAN/WAN | 3*10/100M LAN port (RJ45 interface) |
| 1*10/100M WAN port (RJ45 interface) | |
| WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual) | |
| Antenna | 5*antenna (50Ω SMA female interface, detachable); |
| Wi-Fi*2 Cellular*2, GPS*1; | |
| Cellular support MIMO option(Diversity Receiving); | |
| WiFi support MIMO option(Diversity Receiving); | |
| Button | Reset |
| Indicator | SYS, VPN, WiFi, Cell1, Cell2, Cell Signal1, Cell Signal2, LAN1, LAN2, LAN3, LAN4, WAN, CHR, GPS |
| Console | 1 console port (also can be used as M2M port) |
| Serial port | RS232 or RS485 with DB9 and Terminal Block interface |
| IO Port (option) | 2 |
| Management | Easy to use and management; |
| Web/Telnet/SSH/CLI, support remote management; SMS;SNMP;RMS(Remote Management System) | |
| At command | Supported |
| UIM/SIM Card Slot | Support 1.8V/3V UIM/SIM cards, two sim card slot |
| DC Jack | Two types of input jack for DC |
| 2.5mm DC jack * 1 | |
| Terminal Block * 1 | |
| Main Features and Performance | |
| USB Host | No, can ODM |
| SMS/Voice | SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving; |
| GPS (Option) | GPS feature |
| VPN | PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server) |
| OpenWRT (Option) | Optional |
| DTU(Option) | With DTU feature(Serial to Cellular Gateway feature, RS232 or RS485 port option) Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes; |
| VRRP (Option) | Optional |
| Route | Static Route; |
| Optional for Static Route (BGP, BGPD, OSPF, Zebra, Rip); | |
| SNMP | Support V1, V2. V3 |
| VLAN | Support multi-LAN IP address, support two IP address |
| Wi-Fi | Optional, 802.11b/g/n;300Mbps. |
| Can be used as AP and client; | |
| Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users | |
| POE | Optional for LAN/WAN RJ45(use with POE adapter) |
| Fail Over Redundancy (Network Backup feature) | Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy; Cold Backup is default, Hot Backup is option; Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers; Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup. |
| Firmware update | support firmware update locally or remotely (LAN, WiFi and OTA WAN) |
| Syslog | local and remote |
| DDNS | Yes |
| DHCP Server | Yes |
| Internal Battery | Not Support |
| Others | DNS proxy; |
| Optimized EMC design; | |
| Real-time clock (NTP, support update with defined hours); | |
| WAN/LAN/Memory statistics; | |
| Local/remote profiles backup and retrieve; | |
| Protocol | |
| Protocol support | TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc. |
| Security | |
| Firewall | support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
| Advanced Firewall Features | Stateful Packet Inspection (SPI) VPN Pass-through |
| Media Access Control | CSMA/CA with ACK |
| Certifications | REDIUS Client |
| Power | |
| Power supply | DC 5V-50V, typical DC 9V1A or 12V 1A, 12V car use; DC 5V-40V is the default, DC5V-50V is the option; |
| Current | Idle: about 140mA@12VDC Communication: about 300mA@12VDC |
| Software | |
| Device Management | WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
| Minimum System Requirements | Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
| Physical | |
| Operationg Temperature | Storage Temperature: -40-85 degree; Working Temperature: -30-75 degree; |
| Humidity | 95% Maximum(Non-condensing) |
| Dimensions | PCBA: 100mm x 80mm x 22mm With case: 102mm x 87mm x 35mm |
| Weight | 330g (not including the antenna) |
| Others | |
| Warranty | 1 Year default. Option extends to 5 years maximum. |
>>| Packing List
- The H750 Series wireless Router
- CAT5e Ethernet Cable
- Power Adapter
- Antenna
- Others depends on option feature
