Computer Hot Seller Peripheral Component Parts provide Mouse,Networking Device Hot Promotion Unlocked Huawei B593 B593s-12 4G LTE CPE FDD 100Mbps WIFI Wireless Router LAN , RJ45 Port pk e5776 b880 b890 e589. Get Discount Now! Only US $84.18/piece at this time. Hurry buy Now before back to normal price! Normal price US $118.57 or you can Check price now. Dont waste your time. Buy Now only in Great shops Trusted Seller Store!
B593u-12 is different B593s-12.
b593u-12 have 2 port phone slot.support voip.

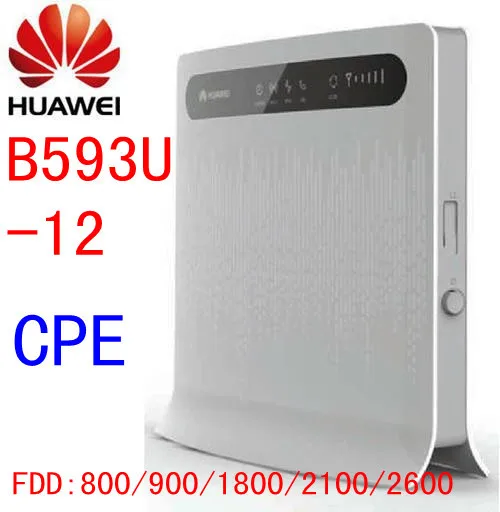

Huawei B593 4G LTE CPE Router is world\s first 4G LTE TDD FDD Broadband CPE Router. B593u-12 is out of stock now.B593s-12 supports the same bands with b593u-12.But its without the rJ11 port.Manufacturer Huawei Model B593 Unlocked Fully unlocked. ready to use with global internet providers Network Bands We will ship a random version from the models specified below, please leave us message if you need specific model . Huawei B593U-12 4G LTE-FDD 800/900/1800/2100/2600MHz3G UMTS/WCDMA/DC-HSPA+ 900/2100Mhz2G GSM/GPRS/EDGE 850/900/1800/1900MHz Connectivity Interface SIM-Card Slot Data Speed Download up to 100 Mbps, Upload up to 50 Mbps. 3G/4G Speed 100Mbps Wi-Fi Speed 150Mbps Memory MicroSD card slot up to 32GB. Ports 2x USB 2.0. 2x RJ11. 4x 10Base-T/100Base-TX - RJ-45 Display Led indicator as below. Antenna Internal antenna. 2*2 MIMO Antennas. External antenna slot (optional). Dimensions Size: 1900 x 176 x 35 mm. Weight 500g. Supported Systems Windows XP, Windows Vista, Windows 7, Mac 10.5 and newer, Linux. Features Plug-and-play configuration, pairing button for easy set-up. LED Indication of WiFi / Power / Transmit Status across. WiFi Security supports WEP / WPA / WPA2 /WPA(PSK) / WPA(PSK2). Internal 2.4GHz Wi-Fi antenna supports 802.11b/g/n X2. Management and configuration via web users interface from any computer or smartphone. Automatic Internet failover to Wireless WAN for alternate Internet connectivity (ADSL/Cable/Fibre). Firewall, VoIP, TR069 remote management, HTTP online upgrade, QoS, USB share, UPnP IPv6, DLNA, fax, print, VPS, VLAN (option).Operation systems its compatible with:
* Windows 2000/ Windows XP/ Windows Vista/ Windows 7
* Mac OS 10.5/ Mac OS 10.6/ Mac OS 10.7
* Linux
We have \vodafone\, \T-MOBILE\ , \Telenor\ and \Standard\ etc different telecom-operators\s versions and black colors, generally we send ramdomly ( if you have any particular request, please remark in order)
|
|
1. POWER Indicator 2. WLAN LED 3. WPS indicator 4. TEL indicator 5. MODE indicator
6. SIGNAL indicator 7. SIM card slot 8. POWER button 9. USB Port 10. Power supply position
11. USB-Port 12. Telephone port 13. LAN port 14 LAN indicator lights 15. WPS button
16. RESET button 17. WLAN mode
Application Instroduction:
1. Insert the SIM card into the SIM card slot.
2. Connect the power cord to the modem and the wall socket.
3. Turn on your computer and any other devices modem LAN and USB ports.
4. Turn on your modem POWER button.
CONNECTING PC TO THE MODEM WLAN CONNECTION
1. Turn on your modem POWER button.
2. Make an indicator that the WLAN is enabled. To activate the WLAN feature on and off by holding the WLAN button for more than 3 seconds.
3. Select your network from the list of wireless networks, the SSID name is the same as the name of your modem and press connect. Enter the network security key.
Note: * The SSID and network security key can be found on the label on the back of the modem.
* You can review and change the WLAN security settings for the network-management page under General Settings> WLAN Settings > Security.
4. If the PIN code request is active, log network management page (192.168.1.1 ) and enter the correct PIN code in the field provided.
Network Management Page Opening
1. Make sure that your flash drive and a computer or device the connection is established correctly.
2. Start a web browser and enter the address 192.168.1.1
3. If the PIN code request is active, asking the network management side of it. The default PIN is 0000.
Light Indicators:
light Mode light Description
MODE Blue This light is a constant blue, when the modem is connected to the 4G network, but no data is transferred. The indicator light flashes blue when data is being transferred.
MODE Green This indicator light is constantly green when the modem is connected to a 3G network, but no data is transferred. The indicator light flashes Green when data is being transferred.
MODE Orange This light is constantly orange when the modem is connected to a 2G network, but no data is transferred. The indicator light flashes orange when data is being transferred.
MODE White This light will flash white when the modem to connect to the wireless network.
MODE Red This light is constantly red when the modem cannot connect to a wireless network or modem is not a wireless network.
MODE Mulberry This light is on when the SIM card is not recognized, or PIN has not been or PIN authentication fails.
WLAN On WLAN function is enabled.
LAN1-LAN4 On This light is on when the computer or other device is connected to the LAN port.
SIGNAL On More bars are lit, the stronger the wireless signal.
If you already have LTE CPE B593, you may need the 4G Antenna for Huawei B593, we can provide the original Huawei B593 as requested. There are three models for your reference:
because of the different operators all over the world ,so there are many different logos on the huawei modems,we will send the modems at random in stock!
eg:ee/3/O2/yes optus/ vivo/ 4g/plus/mts/vodafone/orange .. other operator logo.that are unlocked!
Dear friends ,because of the different operators all over the world ,so there are many different logos on the huawei modems,we will send the modems at random in stock!
