Big Offers 4G TDD and FDD LTE Wifi Router with SIM Card (Model:H750t-TF1)

Big Offers 4G TDD and FDD LTE Wifi Router with SIM Card (Model:H750t-TF1) Rating: 5 out of 5

Computer Hot Seller Peripheral Component Parts provide Keyboard,Game Console,Fan Cooler,Networking Tools Big Offers 4G TDD and FDD LTE Wifi Router with SIM Card (Model:H750t-TF1). Get Discount Now! Only US $328.10/piece at this time. Hurry buy Now before back to normal price! Normal price US $386.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!

As a goods that assists your needs to obtain comfort, of training course this item is really intriguing to obtain. You do not need to look for solutions to clean up your purchased products, just do it on your own at residence using the guidelines that have actually been provided. This elegant and easy style is perfect for those of you who like the minimalist style in every item you have.

This page is for H750 series,which has Dual SIM and 1 WAN+3LAN RJ45 port. We also have another 4 kinds of router,please refer as below,if you need H685 router,please click H685,it will go to the specific URL.

Series SIM Card Slot Ethernet Port
Single LAN RJ45*1+WAN RJ45*1 or LAN RJ45*2
Dual LAN RJ45*4+WAN RJ45*1
Dual LAN RJ45*4+WAN RJ45*1
Single LAN RJ45*1+WAN RJ45*1 or LAN RJ45*5

H750 Series Cellular Router

The H750 series Cellular Router is designed for establish a 2G/3G/4G cellular wireless network and share a cellular broadband internet connection. The H750 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the internet using a cellular network. By connect to cellular broadband network; an internet connection can be accessed and shared virtually anywhere within a wireless broadband network.

>>| Hot Spot for Dual SIM H750 series is with single module two sim cards 1. work with one sim card. 2. work with two sim card. Two sim card backup each other (cold standby for failure backup). Nine working modes: 1) SIM1 only 2) SIM2 only 3) SIM1 preferred 4) SIM2 preferred 5) Fail Switch SIM1 First 6) Fail Switch SIM2 First 7) Advance Data Traffic SIM1 First 8) Advance Data Traffic SIM2 First 9) Cell on time traffic Two sims can be any type from 2G/3G/4G at GPRS/EDGE/HSDPA/HSUPA/HSPA/HSPA+/LTE/CDMA1x/CDMA2000 EVDO. (Please confirm the type as below before order . If you need model H750p,please click H750p,it will go to the specific URL)
Version Model Specification

3G WCDMA HSPA+ Version

(Universal)

HSPA+/HSUPA/HSDPA/UMTS; EDGE/GPRS/GSM;Download Speed: 21Mbps; Upload Speed: 5.76Mbps

4G FDD LTE Version

(for Europe, Asia ,Africa,Australia and South Amercia)

FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM;Download Speed: 150Mbps; Upload Speed: 50Mbps

4G FDD LTE Version

(for North Amercia)

FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM;CDMA EVDO/1x: BC0, BC1, BC10 Download Speed: 100Mbps; Upload Speed: 50Mbps

4G FDD LTE Version

(for Japan)

FDD LTE, LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; EDGE/GPRS/GSM;Download Speed: 100Mbps; Upload Speed: 50Mbps
4G TDD LTE Version TDD LTE, LTE: 2600/2300/1900 (B38/B39/B40+B7);TD-SCDMA: 2010~2025MHz/1880~1920MHz (B34/B39), EDGE/GPRS/GSM: 1900/1800/900/850MHz;Download Speed: 100Mbps; Upload Speed: 50Mbps
4G TDD and FDD LTE Version TDD LTE, FDD LTE; DC-HSPA+/HSPA+ /HSPA/UMTS; TD-SCDMA; EDGE/GPRS/GSM;Download Speed: 150Mbps; Upload Speed: 50Mbps
4G TDD and FDD LTE Version TDD LTE, FDD LTE;DC-HSPA+/HSPA+ /HSPA/UMTS; TD-SCDMA;EDGE/GPRS/GSM; EVDO/CDMA; Download Speed: 100Mbps; Upload Speed: 50Mbps

4G FDD LTE Version

FDD LTE, LTE; Download Speed: 100Mbps; Upload Speed: 50Mbps
3G CDMA2000 EVDO Version CDMA2000 EVDO/CDMA1x 800/1900Mhz networks Download Speed: 3.1Mbps; Upload Speed: 2.4Mbps
3G CDMA2000 EVDO Version CDMA2000 EVDO/CDMA1x 450Mhz networks Download Speed: 14.7Mbps; Upload Speed: 5.4Mbps
3G TD-SCDMA Version TD-SCDMA: 2010~2025MHz/1880~1920MHz (B34/B39), EDGE/GPRS/GSM: 1900/1800/900/850MHz; Download Speed: 2.8Mbps; Upload Speed: 2.8Mbps
>>| Main: Built-in 2G/3G/4G industrial cellular module, insert SIM/UIM card to work directly; Built-in two sim card slots; RJ45 LAN *3; RJ45 WAN *1;Redundancy backup: cellular1+ cellular 2+ WAN RJ45 >>| Option Feature 1) WiFi 802.11b/g/n (working as AP, Bridge Repeater, client) 2) GPS 3) Serial port for DTU feature (Serial to Cellular Gateway), RS232 or RS485 to select one 4) DC input 5V~50V (default is DC5V-40V) 5) dynamic route (D-route) for RIP, OSPF, BGP, Zebra 6) DIO port *2 (only output, no input) 7) Cellular/WAN RJ45 hot failover (for this version, Spec and pricing is different. Please query for dedicated specification)

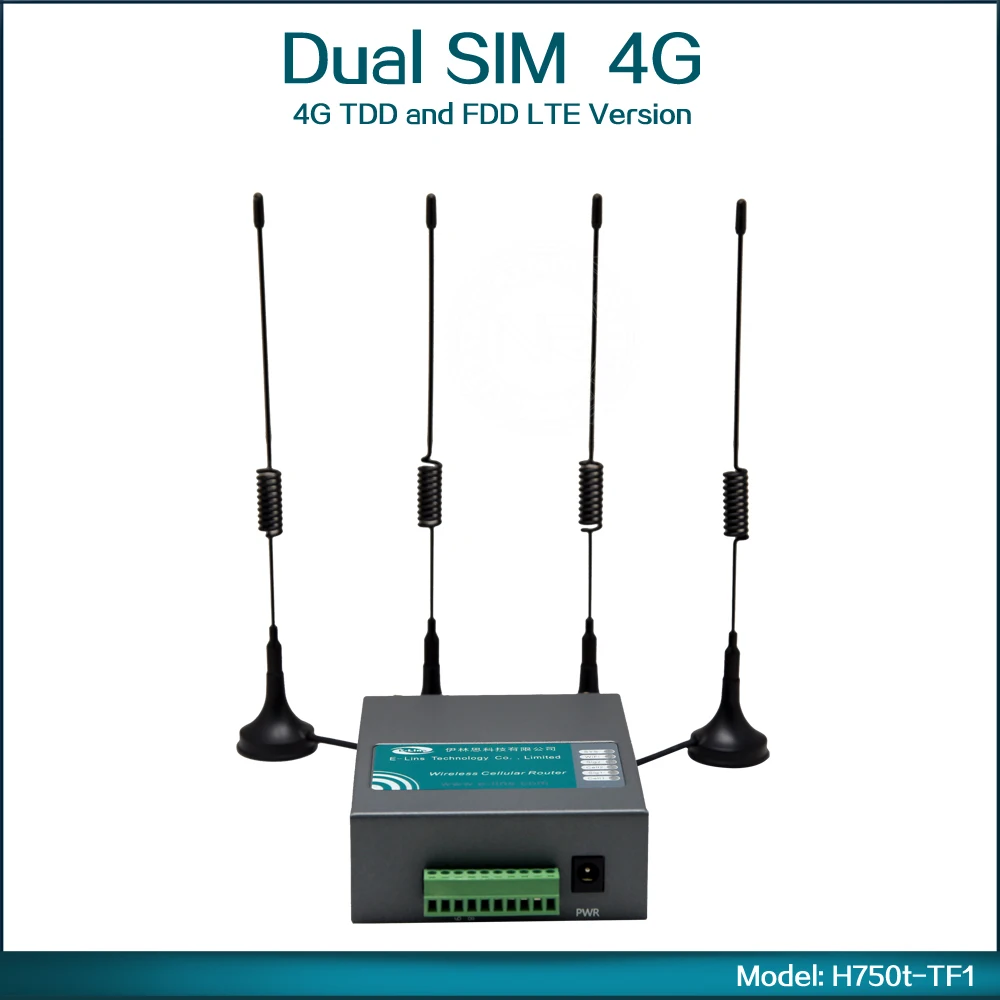

>>| Product Image:

>>| Specification
Wireless
Compatible Mobile Networks UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)
GSM EDGE/GPRS
CDMA1x
CDMA2000 EVDO Rev 0, Rev A, Rev B
TD-SCDMA/TD-LTE
4G LTE (FDD/TDD)
Interface
LAN/WAN 3*10/100M LAN port (RJ45 interface)
1*10/100M WAN port (RJ45 interface)
WAN ports support Cell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)
Antenna 5*antenna (50Ω SMA female interface, detachable);
Wi-Fi*2 Cellular*2, GPS*1;
Cellular support MIMO option(Diversity Receiving);
WiFi support MIMO option(Diversity Receiving);
Button Reset
Indicator SYS, VPN, WiFi, Cell1, Cell2, Cell Signal1, Cell Signal2, LAN1, LAN2, LAN3, LAN4, WAN, CHR, GPS
Console 1 console port (also can be used as M2M port)
Serial port RS232 or RS485 with DB9 and Terminal Block interface
IO Port (option) 2
Management Easy to use and management;
Web/Telnet/SSH/CLI, support remote management; SMS;SNMP;RMS(Remote Management System)
At command Supported
UIM/SIM Card Slot Support 1.8V/3V UIM/SIM cards, two sim card slot
DC Jack Two types of input jack for DC
2.5mm DC jack * 1
Terminal Block * 1
Main Features and Performance
USB Host No, can ODM
SMS/Voice SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option; SMS text sending and receiving;
GPS (Option) GPS feature
VPN PPTP, L2TP, IPSec, GRE, Tunnel (PPTP server, PPTP client, L2TP client, IPSec client, IPsec server)
OpenWRT (Option) Optional
DTU(Option)

With DTU feature(Serial to Cellular Gateway feature, RS232 or RS485 port option)

Details: Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps; Serial Parity: none, even, odd; Serial Databits: 7, 8; Serial stopbits: 1, 2; Serial flow control: none, hardware, software; Mode: Server (up to 4 server centre, can OEM to be more), Client; Protocol: TCP, UDP ; Heart Beat : Yes;
VRRP (Option) Optional
Route Static Route;
Optional for Static Route (BGP, BGPD, OSPF, Zebra, Rip);
SNMP Support V1, V2. V3
VLAN Support multi-LAN IP address, support two IP address
Wi-Fi Optional, 802.11b/g/n;300Mbps.
Can be used as AP and client;
Frequency from 2.4GHz to 2.483GHz,Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users
POE Optional for LAN/WAN RJ45(use with POE adapter)

Fail Over Redundancy

(Network Backup feature)

Auto-dial feature, keep alive link; LCP, ICMP check; Built-in watch dog; Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;Cold Backup is default, Hot Backup is option; Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers; Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.
Firmware update support firmware update locally or remotely (LAN, WiFi and OTA WAN)
Syslog local and remote
DDNS Yes
DHCP Server Yes
Internal Battery Not Support
Others DNS proxy;
Optimized EMC design;
Real-time clock (NTP, support update with defined hours);
WAN/LAN/Memory statistics;
Local/remote profiles backup and retrieve;
Protocol
Protocol support TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, etc.
Security
Firewall support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDSsupport WPA1/2 – PSKsupport WPA1/2 – 802.1xsupport EAP – TLS, TTLS, LEAP, PEAPTKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAPsupport IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ
Advanced Firewall Features Stateful Packet Inspection (SPI) VPN Pass-through
Media Access Control

CSMA/CA with ACK

Certifications

REDIUS Client

Power

Power supply

DC 5V-50V, typical DC 9V1A or 12V 1A, 12V car use;

DC 5V-40V is the default, DC5V-50V is the option;

Current Idle: about 140mA@12VDC Communication: about 300mA@12VDC

Software

Device Management WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)
Minimum System Requirements Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card

Physical

Operationg Temperature

Storage Temperature: -40-85 degree;

Working Temperature: -30-75 degree;

Humidity

95% Maximum(Non-condensing)

Dimensions PCBA: 100mm x 80mm x 22mm With case: 102mm x 87mm x 35mm
Weight

330g (not including the antenna)

Others
Warranty

1 Year default. Option extends to 5 years maximum.

>>| Packing List
  • The H750 Series wireless Router
  • CAT5e Ethernet Cable
  • Power Adapter
  • Antenna
  • Others depends on option feature

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
