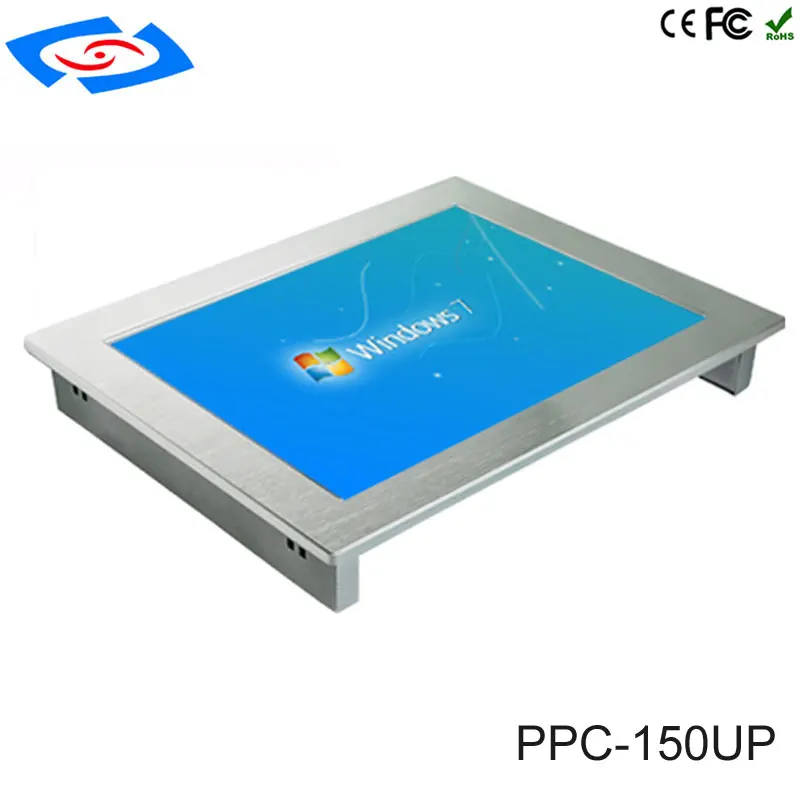

Big Special 15inch Intel I5-3217U / I7-3517U Fanless Industrial Panel PC All In One PPC-150UP

Big Special 15inch Intel I5-3217U / I7-3517U Fanless Industrial Panel PC All In One PPC-150UP computers hot seller Rating: 2.8 out of 5

Computer Hot Seller Peripheral Component Parts provide Game Console,Component Parts Big Special 15inch Intel I5-3217U / I7-3517U Fanless Industrial Panel PC All In One PPC-150UP. Price at this time US $544.85/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

Quality products ensure your life much more comfy when using it. If you are interested to get it, you could straight contact the sales to get more information about this top quality item.

The product is very best. Seller is very friendly. He's faster in answering my questions. Shop admin deliver package very fast. The very fast packets delivery the address. We are satisfied with her service.

Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store

Bulk Order !!!!!!!

More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

15inch Intel I5-3217U / I7-3517U Fanless Industrial Panel PC All In One PPC-150UP Orderssssssss!!!!!!​

Product Description 1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI for optional . 2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications. 3.With 15inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard, support Windows XP(Pre-install), Windows XP/ win7 system ,CF,HDD,SDD, multiple I/O interfaces. Features

Model Name	PPC-150UP
Display
Size	15"
Resolution	1024×768
Brightness	350cd/m2
Contrast	400：1
Touch Screen	5-wire China resistive touch screen
LCD screen	industrial LCD display
System
CPU	i5-3317U i7-3517U
Chipset	Intel QM77
Memory	Onboard 4G MAX 8G
Storage	SSD 32G（Up to 64G/128G/256G）， Optional 2.5 Inch SATA HDD 320G/500G/1TB etc.
System	XP/Win7/Linux/Win8
I/O
Lan	2×10/100/1000Mbps RJ45 LAN,Lan chip intel 82583V/82579LM
Serial Port	COM1×RS485/RS422（default RS485）, COM2-COM3×RS232/485（default RS232）； COM4×RS232（optional add 2 RS232）
USB	3×USB3.0,（optional add 4×USB2.0）
Display	Integrated intel HD Graphics，1×VGA、1×HDMI、1×DP
Audio	Integrated ALC892, 1×MIC-in,1×Line-out，（optional 2W Built-in speaker）
Others	1× GPIO（optional）
Patulous Option	1×SIM，2×min-pcie (wifi/3G optional ）
Watchdog Timer	1-255s，Programmable
Thermal methods	Fanless
Consumption	Less than 25W
Working Temp.	-20℃-60℃，Humidity 5%-90%（Non-condensing）
Storage Temp.	-20℃-60℃，Humidity 5%-90%（Non-condensing）
Power	Wide voltage 9V～25V，12V/8A Power adapter
Switch ON/OFF	Switch
Shell Material	High-strength aluminum brushed pane;IP65；Spray painting
Color	Silver
Net Weight	5.05kg
Installation	Embedded mounted、VESA rack mounted
Dimensions(mm)	376.5×303.5×53
Hole size（mm）	353.4×279.4
Warranty
Warranty	18 months
Order information
Model Name	15 inch China resistive touch screen,Sliver
Standard	i5-3317U CPU、1.8G、4xG、SSD 32G（XP）、 4×COM、、2×LAN、3×USB3.0、1×VGA、1×HDMI、1×DP、1×MIC-in/Line-out
Accessories	12V/8A Power adapter，Power line，4 sets embedded Install button,RS485 connector
Optional	i5-3317U,i7-3517U，8G/SSd 64G/128G/256G，3G/WIFI，Built-in speaker etc.

Applicable scene

Application Range
Mechanical automation, medical equipment, play games, POS machine, automatic service and intelligent retail,Mobile vehicle-mounted computer solution

Packaging & Delivery

Packing detail: One pc in a gift box (L*W*H)353*279*45mm , 10 pc in a carto

Delivery: 3 days after payment
