Computer Hot Seller Peripheral Component Parts provide computers hot seller,Networking Device,Mouse Hot Flash Deal 65 2 points touch screen panel kit usb / ir touch overlay for all in one PC computer,touch ,etc, driver free, plug and play. Get Discount Now! Only US $157.50/piece at this time. Hurry buy Now before back to normal price! Normal price US $175.00 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
As a product that aids your should obtain comfort, obviously this New Hot Flash Deal 65 2 points touch screen panel kit usb / ir touch overlay for all in one PC computer,touch ,etc, driver free, plug and play product is extremely intriguing to obtain. This Hot Flash Deal 65 2 points touch screen panel kit usb / ir touch overlay for all in one PC computer,touch ,etc, driver free, plug and play item is really setting friendly. Where to cleanse it is very easy. You do not require to look for services to clean up your purchased items, just do it on your own in your home making use of the standards that have actually been offered. This stylish as well as simple style is best for those of you that love the minimal style in every product you have. In addition, there are numerous even more numerous features that you can get and of course actually assists you to assist in all your active life.

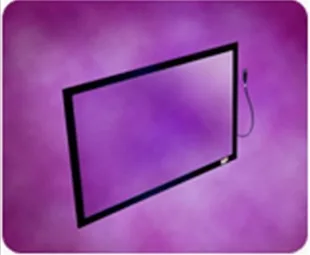

65 2 points touch screen panel kit usb / ir touch overlay for all in one PC computer,touch TV,etc , driver free, plug and play
Infrared Touch Panel Working Principal
IR Touch Screen is a touch frame which is usually installed in front ofthe display screen. The frame is integrated with printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of thetouch frame. Each of IR-LEDs and photo transistors is set on the opposite sides to create a grid of invisible infrared light. The bezel shields the parts fromthe operation
Super advantages for 65 inch 2 points IR multi touch screen :
- 2 points touch (Multi touch)
- Support zoom in/out, display rotation
- USB interface, Drive free, plug and play
- Supporting 2 points touch under windows7, windows8 and Android system
- Supporting single touch under Linux System
- Withstands severe environments
- Stable, no-drift calibration performance
- Vandaproof and abrasion-resistant screens, ideal for rugged applications
- Parallax-free performance for LCD displays
- Sealable against contaminants
- Operable in various light conditions, indoor and outdoor
Infrared Dual/Multi Touch Basic Characteristics:
- 2 points touch (Multi touch)
- Support zoom in/out, display rotation
- Withstands severe environments
- Stable, no-drift calibration performance
- Vandaproof and abrasion-resistant screens, ideal for rugged applications
- Parallax-free performance for LCD displays
- Sealable against contaminants
- Operable in various light conditions, indoor and outdoor
Specification
| Size | |
| General Size | 15 inch to 159 inch |
| Fit in with | Panel display device |
| Performance | |
| Touch Mode | Single-point touch, Multi-touch, drag, draw-line, rotate, zoom in/out |
| Resolution(Interpolation) | 4096*4096 |
| Linearity Error | <1.5mm |
| Response Speed | <15ms |
| Mechanical | |
| Input Method | Finger or gloved hand (rubber ,cloth or leather) |
| Minimum Touch Object | 2.5 mm X 2.5 mm |
| Vandal-proof | No break by 1-pound steel ball dropping from 130 cm high |
| Optical | |
| Glass: | Without glass, 4mm glare, AG (anti-glare), or AR (anti-reflective) glass optional |
| Light Transmission | 92% |
| Gloss | Antiglare surface (curved or flat): 95 ± 15 gloss units or 65 ± 15 gloss units |
| Environmental | |
| Temperature | Operating Range: -20°C ~ 70°C; |
| Storage Range: -40°C ~ 85°C | |
| Relative Humidity | Operating Range: 0%~90% RH (no dew falls) |
| Storage Range: 0% to 95% RH (no dew falls) | |
| Ambient Light | Direct sunlight 90°to ±30° to the display surface Touch detection operational |
| Direct sunlight all angles to display surface Free of false touch reports | |
| Electrical | |
| Operation Voltage | Typical +DC 5V, +4.75V to +5.25V |
| Power Supply | Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms |
| Size above 52”(52” not included): external AC-DC power adaptor | |
| Interface | Full Duplex USB 2.0 (Full Speed) Plug and play compatible |
| Plug and play compatible | |
| Current | Typical 150MA@+5VDC; 350mA, maximum |
| Power | <1.5W, operating current<300mA |
| Electrostatic Protection | 15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4) |
| Controller | Integration inside touch panel |
| Agency Approvals | CE, FCC, Rohs |
| Operating System | |
| Operation System :windows 7, windows8, Android, Linux | |
