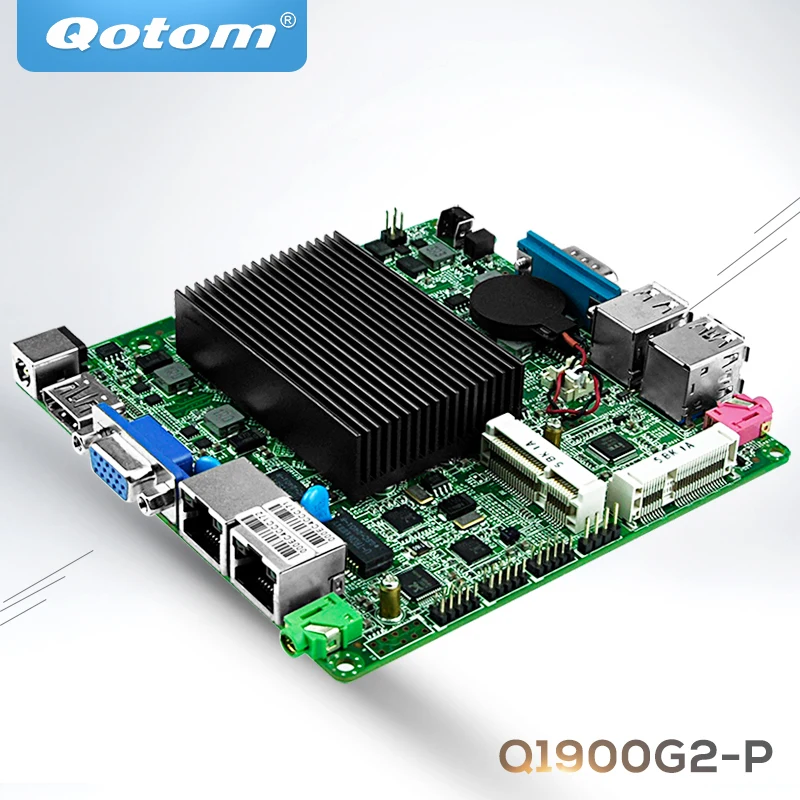

Computer Hot Seller Peripheral Component Parts provide Fan Cooler,Memory Cards Hot Deals QOTOM Mini ITX Motherboard with celeron j1900 processor onboard, quad core 2 GHz, up to 2.42 GHz, dual lan motherboard DC 12V. Price at this time US $99.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
1. Import fees
The buyer should pay import fees when the parcel arrive at the Customs. We are not responsible for it but can do our best to help buyer reduce the fees. Declaring a lower value like $42 per piece is the best solution for most buyers. We do it by default. If we should declare true value, please leave a message.
2. Shipment
DHL/ FedEx express are very fast, 3~5 working days to most of countries. If you choose the cheaper Post like Singapore Post, Netherlands Post, etc, it will take long time. Please wait patiently.
3. Necessary accessories
All QOTOM Motherboard will come without memory/ hard disk/ wifi. If you need them, contact us in advance.
4. Download link
If you need motherboard User Manual or Windows drivers download link, please leave message.
Specification| Description | |
| Mechanical standard | NANO ITX Industrial Motherboard |
| 120mm x 120mm | |
| Processor | Intel Celeron Processor J1900 (2M Cache, quad core 2.0 GHz, up to 2.42 GHz) |
| With up to 10 W TDP | |
| BIOS | AMI BIOS |
| 16MBit SPI BIOS | |
| Memory | One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket |
| Support DDR3L 1333/ 1600 MHz SO-DIMM 1.35V, Non-ECC | |
| Support 8GB MAX | |
| Graphics | Intel HD Graphics |
| Display: VGA / HDMI Dual Display | |
| 1x HDMI (port), 1x VGA (pin) | |
| LAN | 2x Realtek RTL8111E 1000M |
| Audio | Realtek ALC662 HD Audio Decoding controller |
| 6 Channel Audio output | |
| Line out + MIC IN Port | |
| COM | 1x COM(RS232 port) |
| USB | 3x On-board USB 2.0 |
| 1x On-board USB 3.0 | |
| 1x Pin interface USB 2.0 | |
| Storage | 1x SATA 3.0 (6Gb/s) |
| 1x Mini PCIE port | |
| Expansion Port | 1x PCI Express Full-Mini Card connector (for mSATA SSD) |
| 1x PCI Express Half-Mini Card connector (for WIFI and Bluetooth) | |
| 1x SATA power connector | |
| 1x SATA 3.0 connector (6Gb/s) | |
| 1x DDR3 SO-DIMM socket | |
| 1x Front panel header | |
| 3x Serial port headers | |
| 1x 9 Pin VGA header | |
| 1x Front panel audio header | |
| 1x Front panel dual-port USB 2.0 header | |
| Front Panel | 1x Push button for Power ON/OFF |
| 1x Power LED | |
| 1x USB 3.0 port | |
| 3x USB 2.0 ports | |
| 1x Serial port | |
| 1x Mic in port | |
| Black Panel | 1x DC in connector |
| 1x HDMI port | |
| 1x VGA (D-Sub)port | |
| 2x RJ45 1000M ports | |
| 1x Speaker out port | |
| Power Supply | DC 12-19V |
| Working condition | Operation Temperature: -10 ~ 50 degree |
| Operation Humidity 10%-90% Relative Humidity, | |
| Non-Condensing |
We have standard neutral packaging box for samples.
Packing list:
1x Motherboard Q1900G2-P
3x COM cables
1x SATA cable
Please contact us if you need motherboard User Manual or Windows drivers download link.
Related Mini PC
QOTOM Mini ITX Motherboard Q1900G2-P is made for Mini PC Q190S & Q190P
