Computer Hot Seller Peripheral Component Parts provide Fan Cooler,Memory Cards,Networking Tools,Networking Device Terrific Promotion Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN. Price at this time US $180.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Partaker Small Computer Store Trusted Seller Store!
Take an appearance at our Special Terrific Promotion Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN evaluation to get the most effective products you wish. You could check out detail information about this goods below. Check out our Discount Terrific Promotion Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN review to obtain the best product you like. You can check out detail information regarding this Limited Terrific Promotion Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN goods below. item costs as well as accessibility are exact as of the date/time indicated as well as go through change. Any kind of price as well as accessibility information showed on this website at the time of acquisition will put on the purchase of this item.

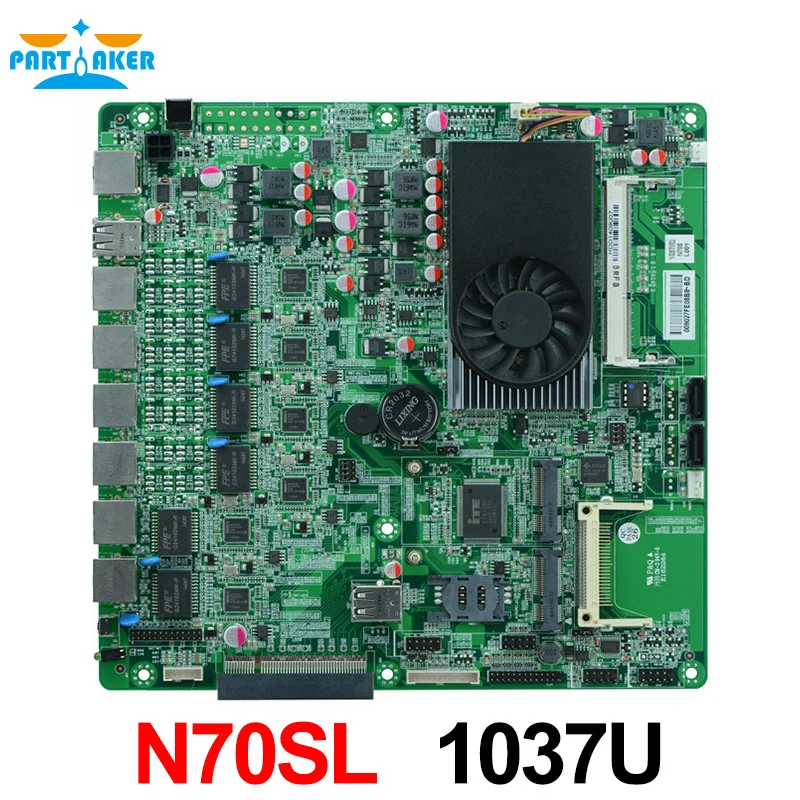

Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN
| Item No. | N70SL VER:1.1 |
| CPU | On board Intel® 1037U dual-core 22nm processor 1.8GHz TDP17W |
| Chipset | Intel® NM70 high-speed chipset |
| Memory | 1*SO DDRⅢ 1333/1066, Up to 8GB. |
| Display | Integrated Intel® HD Graphics core, support VGA display output. |
| Expansion Bus | 1* PCI-E 8x slot, can be extended Optical interface module / Electrical interface module |
| 1* Mini-PCIE slot, supports WIFI, 3G module,alternative with PCI-E 8x | |
| Networking | Integrated 6*Intel® 82583V Gigabit Ethernet , Supporting Wake-On-Line,PXE |
| Storage Function | 2* SATAⅡ hard disk interface, the transmission speed of up to 3Gbps. 1* MSATA slot, supporting SSD, the transmission speed of up to 6Gbps. 1* CF slot (alternative with SSD, jumper control swaps of interface) |
| Rear I/O | 1* COM CISCO standard interface |
| 2* USB 2.0 | |
| 6* RJ-45 | |
| 1* POWER(Switch) | |
| 1* LED1(POWERLED/HDDLED) | |
| 1* 12V DC_JACK INPUT(side) | |
| Built-in I/O Interface | 1* JVGA 12pin |
| 1* LAN_LED 2*13pin | |
| 4* USB 2.0 | |
| 1* LPT | |
| 1* COM RS232 | |
| 1* FP1(Front panel buttons and LED connected 2*5pin) | |
| 1* PS/2 Keyboard and Mouse | |
| 1* ATX_4pin(can be made +12Vinput/output power interface) | |
| 2* PWROUT Hard drive power connector | |
| Cooling System | 1* CPUFAN 4pin 1* SYSFAN 3pin |
| GPIO | 4-Way Input/Output GPIO |
| BIOS | 32MB SMT Flash ROM |
| Watchdog Function | Integrated chipset, support hardware reset function (L256, 0~255 seconds) |
| Power Supply | DC12V Single power |
| Operating Temp. | -10°C~60°C |
| Storage Temp. | -20°C~70°C |
| Humidity | 5%-95% ( relative humidity; non-condensing) |
| Size | 220mm x 220mm |
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Terrific Promotion Firewall motherboard N70SL supports Intel 1037U/1.80GHz Dual core processor with 6*USB/2*COM for 6 LAN
