Computer Hot Seller Peripheral Component Parts provide Mouse,Networking Tools Terrific New QOTOM 3.5 inch Industrial Motherboard Q3205UG2-P with Celeron processor, Mini Motherboard Dual core 1.5 GHz. Price at this time US $103.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Affordable price as well as totally free delivery. Allow's get before rates increase.
You are be lucky because can get products best price only at now! Promptly buy Clearance Terrific New QOTOM 3.5 inch Industrial Motherboard Q3205UG2-P with Celeron processor, Mini Motherboard Dual core 1.5 GHz products now!
1. Import fees
The buyer should pay import fees when the parcel arrive at the Customs. We are not responsible for it but can do our best to help buyer reduce the fees. Declaring a lower value like $42 per piece is the best solution for most buyers. We do it by default. If we should declare true value, please leave a message.
2. Shipment
DHL/ FedEx express are very fast, 3~5 working days to most of countries. If you choose the cheaper Post like Singapore Post, Netherlands Post, etc, it will take long time. Please wait patiently.
3. Necessary accessories
All QOTOM Motherboard will come without memory/ hard disk/ wifi. If you need them, contact us in advance.
4. Download link
If you need motherboard User Manual or Windows drivers download link, please leave message.

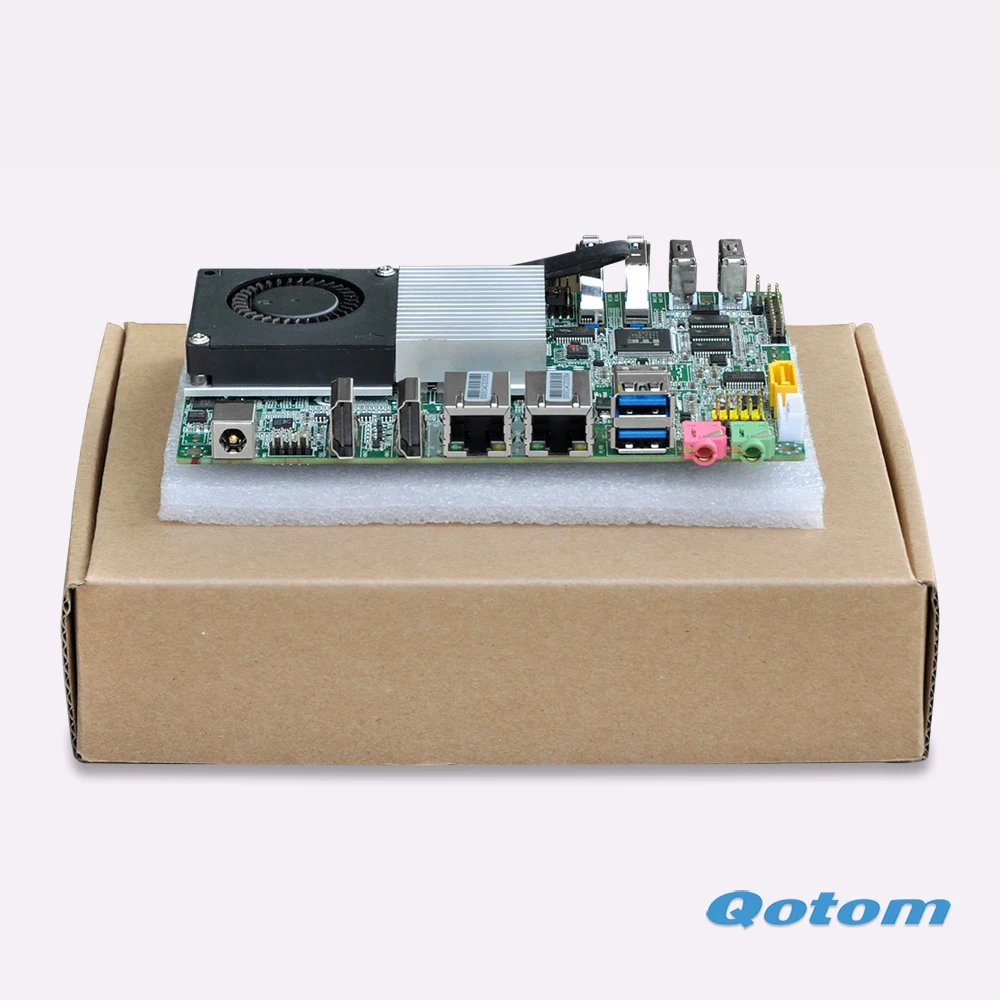

Product Description
| 3.5" Industrial Motherboard | |
| 148mm x 104mm | |
| Processor | Intel Celeron Processor 3205U (2M Cache, dual core 1.50 GHz, Broadwell) |
| With up to 15 W TDP | |
| BIOS | AMI BIOS |
| 64MBit BIOS | |
| Memory | One 204-pin DDR3 SDRAM Small Outline (SO-DIMM) socket |
| Support DDR3L 1333/ 1600 MHz SO-DIMM 1.35V, Non-ECC | |
| Support 8GB Max | |
| Graphics | Intel HD Graphics |
| Display: VGA / HDMI, Three Display | |
| 2 x HDMI (port), 1 x VGA (header) | |
| LAN | 2 x Intel I211-AT 1000M |
| Audio | Realtek ALC662 HD Audio Decoding controller |
| 6 Channel Audio output | |
| Line out + MIC IN Port | |
| COM | 6 x COM port (RS232) |
| USB | 2 x On-board USB 2.0 |
| 4 x On-board USB 3.0 | |
| 2 x Pin interface USB 2.0 | |
| Storage | 1 x SATA 3.0 (6Gb/s) |
| 1 x Mini PCIE port | |
| Expansion Port | 1 x PCI E xpress Full-Mini Card connector (for mSATA SSD) |
| 1 x PCI E xpress Half-Mini Card connector (for WIFI and Bluetooth) | |
| 1 x SIM Slot | |
| 1 x SATA power connector | |
| 1 x SATA 3.0 connector (6Gb/s) | |
| 1 x DDR3 SO-DIMM socket | |
| 1 x Front panel header | |
| 6 x Serial port headers (RS232) | |
| 1 x D-sub header | |
| 1 x GPIO header | |
| 1 x Automatically boot jumper | |
| 2 x USB 2.0 header | |
| 1 x Audio header | |
| Front Panel | 1 x Push button for Power ON/OFF |
| 1 x Power LED | |
| 1 x HDD LED | |
| 2 x USB 3.0 ports | |
| 2 x USB 2.0 ports | |
| Black Panel | 1 x DC in connector |
| 2 x HDMI Connectors | |
| 2 x RJ45 1000M ports | |
| 2 x USB 3.0 Ports | |
| 1 x Mic in port | |
| 1 x Speaker out port | |
| Power Supply | DC 12V |
| Working condition | Operation Temperature -10º-50ºC |
| Operation Humidity 10%-90% Relative Humidity, | |
| Non-Condensing | |
| Accessories | Cable for SATA HDD, 6 COM cables |
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Terrific New QOTOM 3.5 inch Industrial Motherboard Q3205UG2-P with Celeron processor, Mini Motherboard Dual core 1.5 GHz
