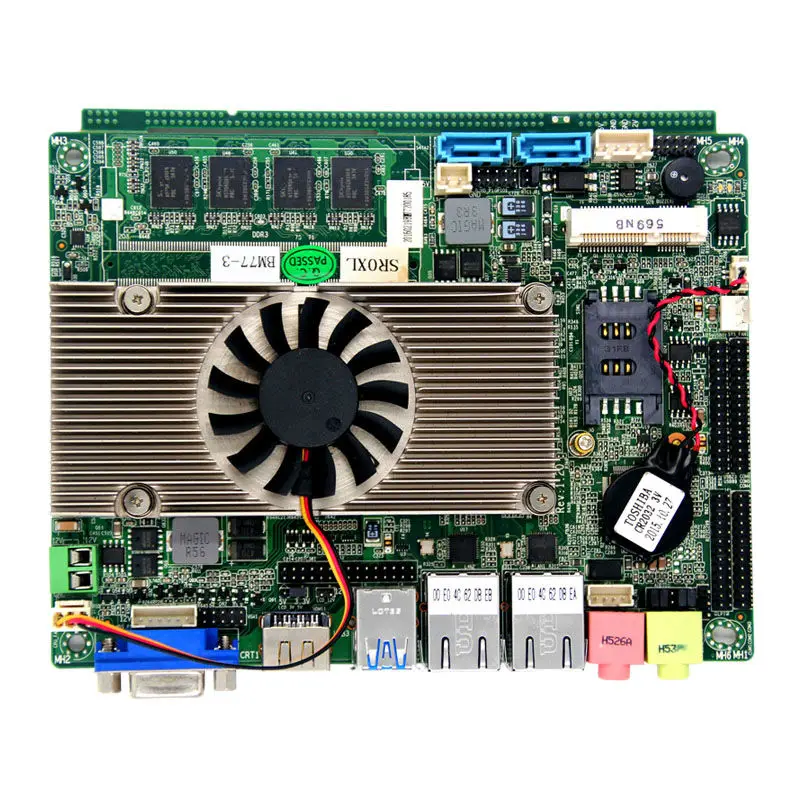

I5 Processor Dual Core CPU HM77 Motherboard with 6*USB 2.0/1*HDMI 3.5 Inch Embedded Motherboard
Main features:
Based on Intel HM77 chipest, support Intel Socket G3 Mobile Sandy/Ivy Bridge i7
Onboard 4gb Ram 1*DDRⅢ 800/1066/13333 SODIMM socket.
Support HDMI,LVDS and VGA display ;
2*RTL8111E PCI-E Gigabit Ethernet LAN 1xMini PCIe support Wifi and 3G Module
2x SATAII /2xUSB3.0/6x USB2.0 /6x COM /1x Mini SATA(support SSD)/1x LPT
Specifications:
Processor | CPU | Onboard CPU,support Intel Mobile sandy/ivy bridge i7 processors |
CPU Package | BGA | |
Chipset | Intel® HM77 Express Chipset Optional. | |
BIOS | UEFI BIOS | |
Ram | Technical architecture | DDR3 memory,1066/1333/1600MHz. |
Capacity | Onboard 4GB Ram | |
Video | Graphic controller | Intel HD Graphics 3000/4000 (CPU Integrated ) |
Dual LVDS | Support dual channel 24bit LVDS connector | |
HDMI | Resolution maximum:1920*1200 | |
Double display support | LVDS+VGA,LVDS+HDMI,HDMI+VGA,Synchronous or asynchronous display | |
Rear Panel I/O | Ports | 1*HDMI 1*VGA port 2*Lan 2*USB 3.0 port 1*Audio I/O interfaces (Line_out,Mic_in) |
Network | Controller | Onboard 2*Gigabit Ethernet,support PXE and Wakeup on LAN. |
Audio | Controller | Onboard HDA ALC662,provide MIC-IN/LINE-OUT and expansion header. |
Super I/O | Controller | NCT6106D |
Hardware Monitor | Watchdog-Timer | 0~255 timer |
Cooler | Aluminum heat sink(fan) | |
Input/Output interfaces | USB | 8*USB(2*USB 3.0 port 6*USB 2.0 expansion header),Max. supported 5V/1A |
Serial port | 6*COM expansion headers (support 5* RS232/1*422/485) | |
PS/2 | ||
GPIO | 8*GPIO expansion header(8 bit),3.3V@24mA electrical level | |
Expansion Sockets | Mini-PCle | 1*Mini-PCIE socket for WIFI/3G |
SMBUS | ||
Storage | SIM | 1*SIM card slot for 3G |
M-SATA | 1*Mini SATA socket for SSD | |
Power supply | Power Type | Single input DC power supply,12V-DC,+/-5% |
Power Consumption | 20W | |
Working environment | Working Temperature | -20°C~+60°C(-4°F~140°F) |
Storage Temperature | -40°C~+85°C(-40°F~185°F) | |
Operating Humidity | 0%~90% (non-condensing) | |
Storage Humidity | 0%~90% (non-condensing) | |
Dimensions | Size | 115*155MM |
Weight | 0.5KG | |
Certifications | CE,RoHS,FCC |
