Computer Hot Seller Peripheral Component Parts provide Mouse,Fan Cooler Great Discount M.NT68676.2A Universal HDMI DVI VGA Audio LCD LED Controller Board LVDS DIY Reuse Laptop for Raspberry Pi. Get Discount Now! Only US $21.84/piece at this time. Hurry buy Now before back to normal price! Normal price US $22.99 or you can Check price now. Dont waste your time. Buy Now only in NJY LCD Controller Board Trusted Seller Store!
Fantastic goods could boost the quality of your life. Eligible to be purchased. Economical rate and also totally free delivery. Allow's buy before costs climb.
Attention:1. Please make sure that your LCD is ok before bidding this item, or you will be responsible for the incompatibility.
2. If you concern much about resolution setting, please reconsider before bidding! But you could choose programmer here to solve.
3. We will try our best to prepare the right kit for you, such as writing the corresponding program into the controller board, selecting the suitable LVDS cable and the suitable inverter. But as we dont have an LCD exactly as yours at hand, we can just test the controller with our own LCD. For yours, you need to test it yourself to check if it works well or not. As you know, there are so many LCDs with many varieties in the market, sometimes we cant promise the exact compatibility. Please consider it before bidding! However, we have gained many success in preparing the kit for our customers in real store. So why not have a try to get surprise!
4. If you are not specialized in electronics or have doubts in operation, please contact us for instruction, as we are not able to responsible for wrong operation.
5. After finishing the connecting, please dont rush to power on! First, use multi-meter to test whether the GND of the LCD is connected with the GND of the controller board. If not, please check the connection again. If yes, please test whether there is a short circuit between the red wires and black wires of the LVDS cable. If there is a short circuit, it means opposite connection or other errors. Any problem, please feel free to contact us. DIY needs a certain professional knowledge, please kindly take the responsibility of the risk. No metal contact is allowed when powering on the controller board, otherwise short circuit may occur, which may cause unavailability of the controller board.
M.NT68676.2A HDMI+DVI+VGA+AUDIO Universal LCD LED Controller Board LVDS DIY 2048*1152
Specifications:
M.NT68676.2Acontroller is suitable for Asia-Pacific market. It can support LED/LCD panels which resolution is up to 2048x1152.
M.NT68676.2Acontroller can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.
M.NT68676.2Acontroller can support dynamic contrast control, headphone input and Digital volume control simultaneously.

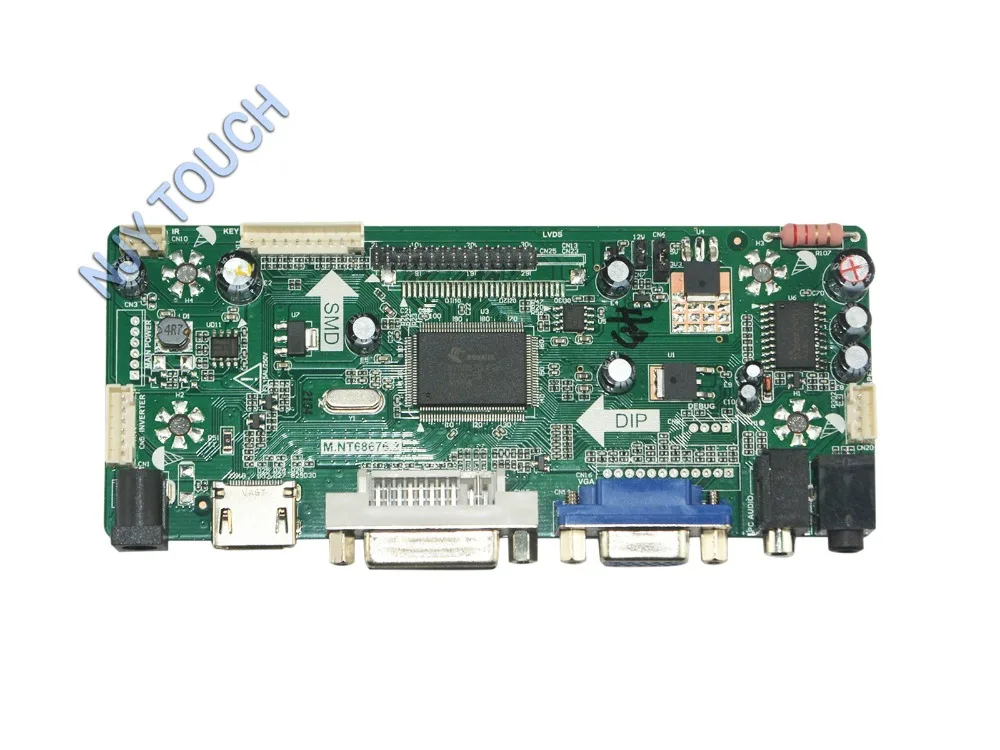

Top view of M.NT68676.2A controller
Front view of M.NT68676.2A controller
Feature:
PCB Dimension:
The size of M.NT68676.2A controller is 139mm(L)*58mm(W)*17mm(H)
This LCD Controller board has a HDMI+DVI+VGA+AUDIO port. It supports LCD displays with a LVDS interface. The max resolution that it supports is 2048*1152.
If you bid, please tell us the Display Model no. of your LCD, then we will check if it is compatible and choose suitable accessories for you.
The panel model no. can usually be found written on a sticker on the back of the LCD panel, and “SAMSUNG LTN150XF-L01” is an example.(disassemble it from its plastic shell and find the sticker)
More details of your LCD like the datasheet are welcome to send to us for further confirmation.
Package includes: A single M.NT68676.2Acontroller
Firmware list (example, not all) for this M.NT68676.2Acontroller
AUO_B101EW01_V1_SI6L_1280X720_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M185XW01_V0_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M190EG02_V4_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M190EG02_V4_NT68676_CVT_7KEY_A_PowerOn_LOGO_NONE_0Adj_R11352_CVT_2012427_17924
AUO_M201EW02_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M215HW01_V0_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M215HW01_V6_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M215HW01_VB_NT68676_5KEY_A_ENG_FHJ_111229
AUO_M220EW01_V0_NT68676_5KEY_A_ENG_FHJ_111229
AUO_RDT271WLM_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M185B3_LA1_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M201P1_L03_C1_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M215H1_L01_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M236H1_L01_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M260J3_L01_NT68676_5KEY_A_ENG_FHJ_111229
CMO_M260J3_L01_NT68676_CVT_7KEY_A_PowerOn_LOGO_NONE_3Adj_R11352_CVT_2012428_115940
CMO_M260J3_L01_NT68676_EO_CVT_7KEY_A_PowerOn_LOGO_NONE_3Adj_120428
CMO_V260H1_LE2(LC420WUN)_MAPEO_NT68676_DEF_ENG_PWON_ADJ3V_5KEY_A_YDW_20120224
CMO_V260H1_LE2(T315HW07)_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327
CMO_V260H1_LE2(V420H1-L07)_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327
CMO_V260H1_LE2_MAPEO_NT68676_DEF_ENG_PWON_ADJ3V_5KEY_A_YDW_20120224
CMO_V260H1_LE2_NT68676_5KEY_A_ENG_FHJ_111229
CMO_V260H1_LE2_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_CVT_2012218_115327
HBT_AUO_M215HW01_VB_NT68674_A_5KEY_CN_0xD372_R10165_HCF_120105
HBT_AUO_M220EW01_V0_NT68674_A_5KEY_CN_0xC114_R10165_HCF_120105
HSD101PFW3_SI6L_1024X600_NT68676_5KEY_A_ENG_FHJ_111229
HV121WX6_SI6L_1280X800_3V_NT68676_5KEY_A_20120402
INL_MT190AW01_NT68676_5KEY_A_ENG_FHJ_111229
INL_MT190AW01_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_3Adj_R11352_CVT_2012413_135155
INL_MT215DW01_V1_NT68676_5KEY_A_ENG_FHJ_111229
LG_JV_LM215WF4_NT68676_5KEY_A_ENG_FHJ_111229
LM230WF5_TRA2_2_NT68676_5KEY_A_ENG_FHJ_111229
LP171WP4_TLB1_DO6L_1440X900_3V_NT68676_5KEY_A_ENG_FHJ_111229
LPL_LM170E03_NT68676_5KEY_A_ENG_FHJ_111229
LTI320AP01_SI8L_1366X768_12V_NT68676_5KEY_A_ENG_FHJ_111229
LTN156AT15_1366X768_SI6L_NT68676_DEF_SCH_5KEY_A_YDW_20120308
NVT_1024X768_NT68676_5KEY_A_ENG_FHJ_111229
NVT_1366X768_NT68676_5KEY_A_ENG_FHJ_111229
NVT_1440X900_NT68676_5KEY_A_ENG_FHJ_111229
NVT_1600X900_NT68676_5KEY_A_ENG_FHJ_111229
NVT_1680X1050_NT68676_5KEY_A_ENG_FHJ_111229
NVT_1920X1080_MAP1_NT68676_5KEY_CN_R10432_HCF_120214
NVT_1920X1080_MAP1_NT68676_CVT_5KEY_A_PowerOn_LOGO_NONE_0Adj_R11352_CVT_2012415_11247
NVT_1920X1080_NT68676_5KEY_A_ENG_FHJ_111229
SAM_LTM220M2_L01_NT68676_5KEY_A_ENG_FHJ_111229
SAM_LTM230HT05_M01_NT68676_5KEY_A_ENG_FHJ_111229
XINGXIN_LP101WX1_SLN2_1280X800_SI6L_NT68676_5KEY_R11284_0XDEDA_HCF_120405
HT12X21_351_SI6L_1024X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex G150XG03_V2_1024X768_SI8L_VER2_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex NVT_1024X768_SWAP_MAP_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex LTD121EA4X_SI6_1024X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex NVT_1024X768_SI6L_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex LP097X01_SI6L_1024X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex G150XG03_V2_1024X768_SI8L_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex NVT_1024X768_SI6L_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex NVT_1024X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AA175AT02_SI8L_1280X768_5V_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_B101EW01_V1_SI6L_1280X720_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_LP154W01_TLA1_SI6L_1280X800_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M185XW01_V0_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M185XW01_VJ_SI8L_1366X768_5V_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M190EG02_V4_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M190EN03_V2_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M201EW02_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M215HW01_V0_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M215HW01_V0_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M215HW01_V6_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M215HW01_VB_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M215HW01_VB_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_M220EW01_V0_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_RDT271WLM_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex AUO_T650HVN04_0_DO8L_1920X1080_120HZ_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B140XTN02_4_DO6DP_1366X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B152EW01_SI6L_1280_854_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B156HB01_V0_D06L_1920X1080_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B156HW01_V0_D06L_1920X1080_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B156XTN03_1_DO8T_1366X768_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230 B173HW02_V1_DO6L_1920X1080_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B173RW01_1600X900_DO8L_3V_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex B173RW01_DO6L_1600X900_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CLAA070NA01CT_SI6L_1024X600_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M156BGE_L01_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M185B3_LA1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M201P1_L03_C1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M215H1_L01_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M215H1_L01_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M215H1_L01_SWAPOE_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M215H1_L01_SWAPOE_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M215H3_LA1_1920X1080_5V_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M236H1_L01_MAP1_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M236H1_L01_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_M260J3_L01_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex CMO_V260H1_LE2_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex G104SN02_XGA_SI8L_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.Hex G150XG03_V2_1024X768_SI8L_NT68676_5KEY_A_SCH_IR_I01_ADJ_0V_LOGO_NONE_R24276_20151230.HexWorking example with M215H3-LA1 LED panel:
Working example with B101UAN01 LED panel:
About Shipping:
We will test them strictly before shipping.
We will ship it in 1-3 working days after your paying. We only ship according to the shipping address. If you want to change shipping address, please contact us in advance in time.
Delivery time is approx:
United States / Canada/United Kingdom / France / Spain/ Switzerland/ New Zealand maytake 14-20 working days.
Eastern Europe may take up to 16-30 working days.
Italy / Brazil/ South America/Russia may take up to 30-50 working days.
Shipped by DHL Express (Need 3-6 working days to arrive) Please contact for lower DHL price.
Return Policy
All returns must be informed before returning.
If the item is damaged or can’t be used due to quality problem, then you can exchange it for a new one or get refund within 7 days after you receive ouritem. Shipping and handling charges cannot be refunded.Exchange or refund will be made after receiving the returning product. The return item and its accessories must be kept original and undamaged.
Exchange due to buyer wrong part ordered, buyer needs to pay 2-ways shipping fee.
Feedback
If you are pleased with your purchase, please leave us positive feedback once receiving the item, and we will return the feedback upon you.
If you have any problem with the outcome of the transaction or product, please dont respond wit negative feedback before contacting us. We will do our best to resolve your case ASAP.
Contact us
Bulk order is acceptable, low prices will be offered to you for bulk order.
Any questions please contact us! Thanks.
Our principles of doing business are: Customer-centric; Good Quality; Fast-response;
Instant-action; Professional-technique; and Smiling service
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Great Discount M.NT68676.2A Universal HDMI DVI VGA Audio LCD LED Controller Board LVDS DIY Reuse Laptop for Raspberry Pi
