M.NT68676.2A HDMI+DVI+VGA+AUDIO LCD/LED Controller Board LVDS Kit DIY Monitor for Raspberry Pi
Condition: New
Function: Turning a bare LCD panel into a working screen. Especially good for reusing old laptop LCD screen (in good condition, but mother board died)
Specifications:
M.NT68676.2Acontroller is suitable for Asia-Pacific market. It can support LED/LCD panels which resolution is up to 2048x1152.
M.NT68676.2Acontroller can synchronize with computer automatically. Synchronization requires the synchronous signal which horizontal and vertical sync are separated.
M.NT68676.2Acontroller can support dynamic contrast control, headphone input and Digital volume control simultaneously.
Top view of M.NT68676.2A controller
Front view of M.NT68676.2A controller
Feature:
PCB Dimension:
The size of M.NT68676.2A controller is 139mm(L)*58mm(W)*17mm(H)
This LCD Controller board has a HDMI+DVI+VGA+AUDIO port. It supports LCD displays with a LVDS interface. The max resolution that it supports is 2048*1152.
If you bid, please tell us the Display Model no. of your LCD, then we will check if it is compatible and choose suitable accessories for you.
The panel model no. can usually be found written on a sticker on the back of the LCD panel, and “LTN150XF-L01” is an example.(disassemble it from its plastic shell and find the sticker)
More details of your LCD like the datasheet are welcome to send to us for further confirmation.

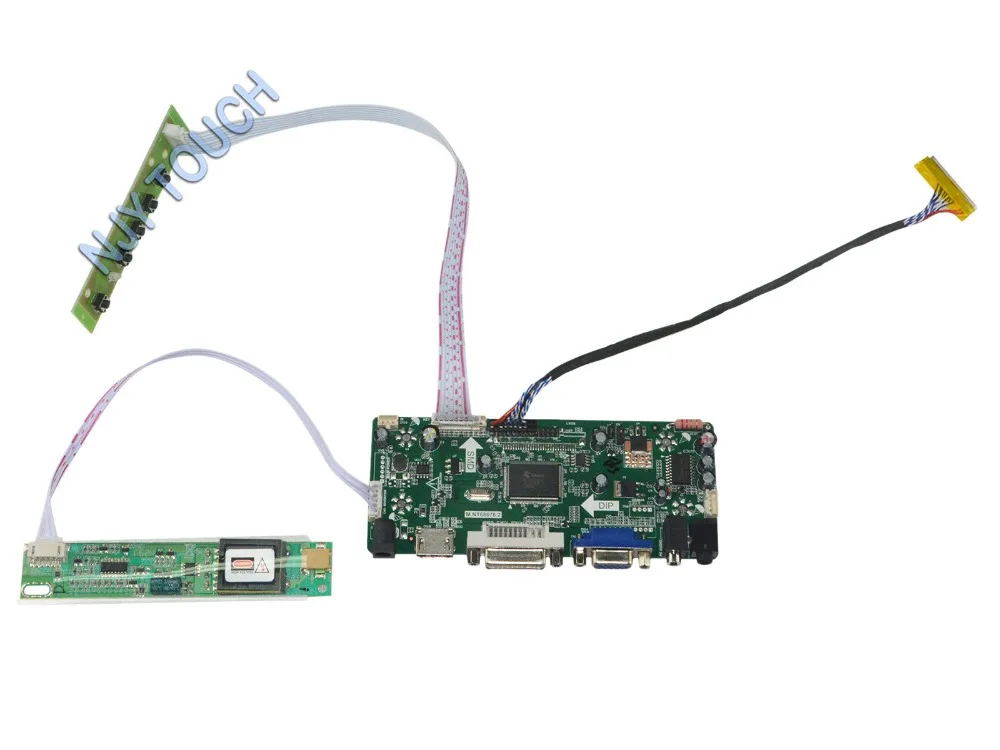

Package includes: A M.NT68676.2Acontroller, a suitable LVDS cable, a suitable inverter and a 5-key keypad.
Suitable LVDS cable will be selected here:
http://www.aliexpress.com/store/group/Cables-for-DIY/110868_211635695.html
Suitable inverter will be selected here:
http://www.aliexpress.com/store/group/Inverter/110868_211635706.html
Here is the 5-key keypad:
http://www.aliexpress.com/store/product/NEW-5-key-keypad-for-LCD-display-controller-boards-DIY/110868_578077434.html
Instruction to connect the controller board to the LCD:
1. Take away the old inverter and old LVDS cable from the LCD panel.
2. Connect the new inverter and LVDS cable to your LCD panel.
3. Connect controller board with PC by HDMI cable.
4. Input power of 12V,4A.
Suitable power adapter (12V, 4A) is essential; if required, you could get one here: http://www.aliexpress.com/store/group/Power-supply/110868_211635685.htmlSuccessful example from our customer:
