Computer Hot Seller Peripheral Component Parts provide Disk Storage,Keyboard,Memory Cards Hurry! Clearance 802.11b/g/n 300Mbps MT7620A OpenWrt WiFi Wireless Router built-in MiNi PCI-E Slot Support 3G/4G/AC mode. Get Discount Now! Only US $42.58/piece at this time. Hurry buy Now before back to normal price! Normal price US $45.30 or you can Check price now. Dont waste your time. Buy Now only in Trusted Seller Store!
Inexpensive cost and also free shipping. Let's acquire prior to prices rise.
Quality products ensure your life much more comfy when utilizing it. If you are interested to purchase it, you could straight contact the sales to obtain more details regarding this top quality goods.
Model No.: ZBT-WE826-T
For this product we have cooperated with Mofi Network. This product have been passed Verizon Certificate.
Warm Reminder
Bundle 1 is only 300Mbps openwrt wireless router with 2 external antennas.
If you need dual band/11AC/2.4G+5G, Bundle 2 is ok for you, and it will be with 4 external antennas.
If you want 3g or 4g router, that means you want to use SIM card to dial out Internet, you need to choose 3g or 4g router, and it will be with 4 external antennas
As for 3G, it can support 3g/2g, as for 4G, it can support 4g/3g/2g.
Bundle Situation (Important!!!)
Bundle 1: 2.4g 300Mbps openwrt wireless router.
Bundle 2: 2.4G+5G/Dual band/802.11ac openwrt wireless router
2.4G: 300Mbps, 5G: 867Mbps
Bundle 3: 3G 300mbps openwrt wireless router.
HSPA+/UMTS dual-band 900/2100 MHz
GSM/GPRS quad-band 850/900/1800/1900 MHz
Bundle 4: 4G 300Mbps openwrt wireless router.
FDD LTE: B1/B3/B5/B7/B8/B20 TDD LTE: B38/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800Bundle 5: 4G 300Mbps openwrt wireless router (USA)
FDD_LTE: Band2(1900MHz)Band 4(1700/2100 MHz)Band 5 (850 MHz)Band 13 (700 MHz)Band 17 (700 MHz)Band 25 (1900 MHz) UMTS (WCDMA)/HSDPA/HSUPA/HSPA+/DC-HSPA+: Band 1 (2100 MHz)Band 2 (1900 MHz)Band 4 (1700/2100MHz)Band 5(850 MHz)Band 8 (900 MHz) EVDO/CDMA:( 800 MHz) BC1 (PCS 1900 MHz) BC10 (800 MHz) GSM/GPRS/EDGEGNSS:GPS: 1575.42 MHz GLONASS: 1602 MHz Note: For all Russian customers, we will ship by CDEK.If you dont know which version that you need to choose, here are some countries version for your reference.
If your country is not mentioned and you dont know which version need to choose, please ask me and i will help you.
Simple Introduction

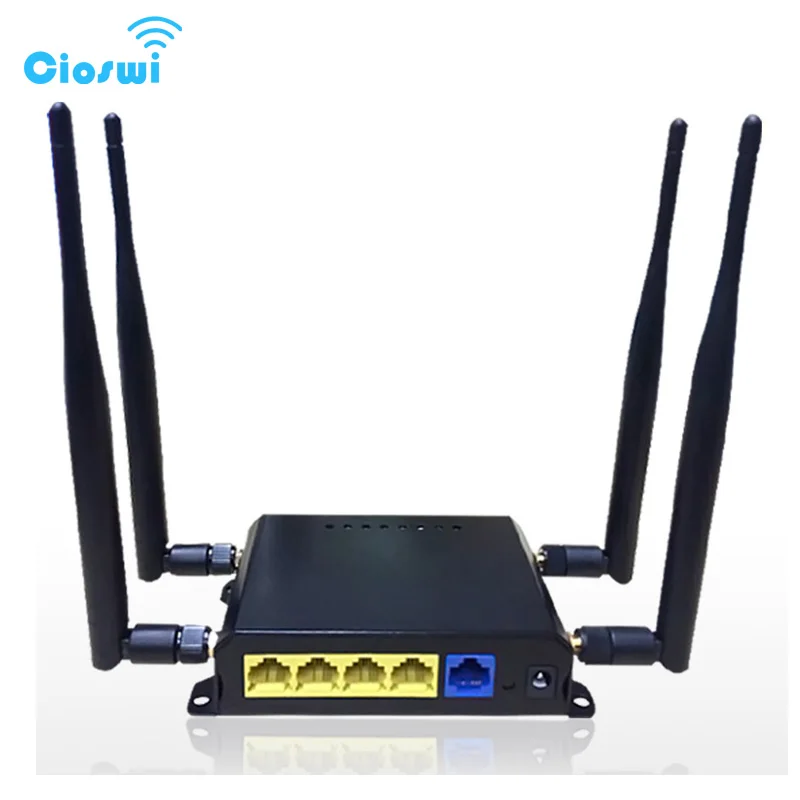

The W826 uses the latest wireless solution, performs better and more function. Stable wireless performance, strongerr scalability, 2.4G 300Mbps, Also support 3G, 4G (3G/4G PCIE mode is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card). Provide 1 USB2.0 interface, 1 Micro slot.
Product Feature
--Support 802.11A/802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
--Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX
--1 USB 2.0 date interface
--1 Micro SD Card Slot
--Support 3G/4G
--Many kinds of encryptions to protect your data transmission
Product Specification
| Main Chipset | MT7620A | |
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 16MB) | |
| RT Power | 802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC mode; | |
| Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode; | |
| Work Channel | 2.4GHz choose: 1-13 5GHz choose: 149, 153, 157, 161, 165 | |
| Wireless Rate | Max 300Mbps | |
| Work Frequency | 2.4GHz | |
| Antenna | 2*undetachable 5dBi antenna | |
| Interface | 1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port (Auto MDI/MDIX) | |
| LED | Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12W | |
| Dimension(L*W*H) | 141*85*26MM | |
| Software | ||
| WAN Type | PPPoE, Dynamic IP, Static IP | |
| Work Mode | AP; Router; | |
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwareding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding | |
| DDNS | Support | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Ctrl | Support | |
| Static Router | Support | |
| System Log | Support | |
| Other Function | Mac clone | |
| Others | ||
| Work Environments | Operating Temperature: 0 degree Celsius ~ 40 degree Celsius Storage Temperature: -40 degree Celsius~ 70 degree Celsius Operating Humidity: 10%~90% non-condensing | |
| Adapter | 12V 1A | |
| Authentication | CE FCC Rohs | |
3G 4G Module Setting Guide
1. Connect to all the antennas correctly.
2. The sim card must insert firstly, and the chip of the sim card should be upward, then connect to the power. If you need to remove the sim card, in order to avoid damaging the SIM card, please remember to cut off the power before you remove sim card.
Upgrade the firmware
If you can access into the recovery mode, that means the router hardware is ok. You can flash the firmware I sent you.
But if you can not access into the recovery mode, sorry, you have damaged the router hardware.
