Description:
What It Does

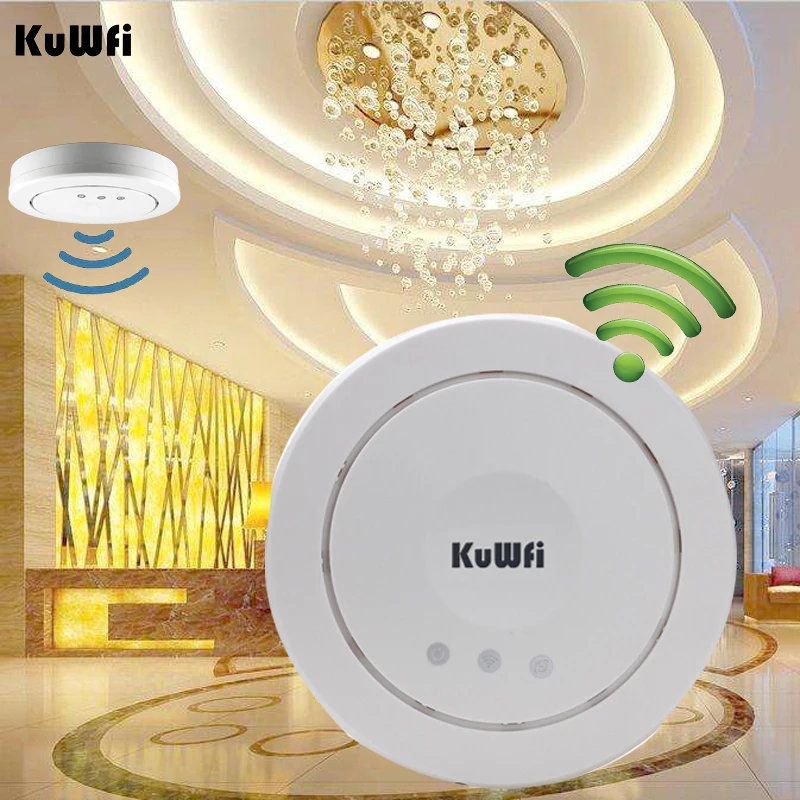

XD9500Q is a 300Mbps high power Ceiling Wireless Access Point with Qualcomm QCA9531 Chipset. Comply with IEEE 802.11b/g/n standard, 300Mbps data rate, with MIMO omni antenna inside, 500mW high RF power together with PoE, easy to set up in different environment.
Ceiling Mount case, Hardware with Qualcomm chipset, 16M Flash, 64M DDR2, firmware work with AC controller for central management and captive portal authentication function, it designed specifically for business-class environments such as hotels, airports, coffee shops, shopping centers, sporting venues, and university campus.
Stylish Ceiling Mount Design
Housed in a stylish ceiling mountable case, the XD9500Q & XD9508Q can be installed on a wall or ceiling to blends in nicely with most interior decorations in a modern hotel. With big space and Installed highly on ceiling, it extends optimum wireless signal to multiple neighboring rooms and better heat radiation.
High Power and Whole Coverage
With 500mW high power, Internally equipped with 2X2 multiple-input, multiple-output (MIMO) 5dBi omni antennas improve range and maximize data rates. Field tested to wirelessly cover 6~8 hotel rooms at an indoor operating distance of 50 meters and allow simultaneous accesses by up to 50 users. Up to 300Mbps wireless rate ensures multiple users an adequate level of service.
Power over Ethernet
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure. But pls note, XD9500Q support 24V Passive PoE.
WLAN Controller & Cloud Server support
This XD9500Q work with Access Control System, easily access advanced network settings through PC, like AP status monitor, change IP address, ESSID, Channel, Password, upgrade firmware, backup and restore...
What’s more, this wireless access point work with Cloud Server, easy to do remote management, Advertisement, captive portal authentication, even Billing and Radius supported in the near future, which make his AP more professional in WiFi Projects.
Specification:
| Hardware | |||
| MCU | Qualcomm QCA9531 | ||
| RF | 2T2R, 300Mbps MIMO tech , comply with IEEE 802.11b/g/n standard | ||
| Memory | 64MB DDR RAM | ||
| Flash | 16MB | ||
| Interface | 2 x RJ-45 for 10/100 Mbps WAN/LAN Port (WAN port support IEEE 802.3af POE) | ||
| 1 x Reset button(Reset & Factory Defaults) | |||
| 1 x Power DC Jack | |||
| Power | DC: 12V/1A; 110V/220V XD9500Q: 24V Passive PoE | ||
| Antenna | Build in 2PCS Omni 5dbi antenna | ||
| Size | 168*35mm | ||
| Frequency | 802.11b/g/n, 533MHz | ||
| 2.4~2.4835GHz | |||
| U.S.,Europe and Japan product covering 2.400 to 2.4835 GHz,programmable for different country regulations | |||
| Modulation | OFDM = BPSK,QPSK, 16-QAM, 64-QAM | ||
| DSSS = DBPSK, DQPSK, CCK | |||
| Throughput | 300 Mbps | ||
| Sensitivity | 802.11n(2.4GHz) | 802.11g | 802.11b |
| -90dBm @ MCS0 | - 90dBm @ 6Mbps | - 95dBm @ 1Mbps | |
| -70dBm @ MCS7 | - 72dBm @ 54Mbps | - 90dBm @ 11Mbps | |
| -90dBm @ MCS8 | |||
| -68dBm @ MCS15 | |||
| Output Power | Radio1(WLAN1) | ||
| 802.11n(2.4GHz)(± 1.5dBm) | 802.11g(± 1.5dBm) | 802.11b(±1.5dBm) | |
| 25dBm@ MCS0~2/MCS8~10 | 25dBm @ 6~24Mbps | 26dBm @1~11Mbps | |
| 25dBm @ MCS3/MCS11 | 24dBm @ 36Mbps | ||
| 24dBm @ MCS4/MCS12 | 24dBm @ 48Mbps | ||
| 24dBm @ MCS5/MCS13 | 24dBm @ 54Mbps | ||
| 24dBm @ MCS6/MCS14 | |||
| 23dBm @ MCS7/MCS15 | |||
| Software | |||
| Operation Mode | Gateway/ AP/ Repeater | ||
| Protocol/Standard | IEEE 802.3(Ethernet) | ||
| IEEE 802.3u(Fast Ethernet) | |||
| IEEE 802.11b/g/n(2.4G WLAN) | |||
| Wireless | Auto-Channel selection | ||
| Distance Control (802.1x Ack timeout) | |||
| BSSID | |||
| Security | WEP Encryption-64/128/152 bit | ||
| WPA/WPA2 Personal (WPA-PSK using TKIP or AES) | |||
| WPA/WPA2 Enterprise (WPA-EAP using TKIP) | |||
| Hide SSID | |||
| Management | |||
| System Settings | Web-based configuration (HTTP/Telnet) | ||
| Firmware Upgrade | Upgrade firmware via web browser or TFTP | ||
| Administration | Admin Password can be configured | ||
| System monitoring | Status in hand , useful statistic and Event log | ||
| Logs | Supports local logs, logs host, logs file export | ||
| Reset | Reset or factory defaults | ||
| Backup | Restore settings & configuration of the device to local file | ||
| Physical Property | |||
| Temperature | Working: 0°C~55°C | ||
| Storage: -20°C to 70°C | |||
| Humidity | 5%~95% (typical) | ||
Package contents:
1* Ceiling AP
1* DC 24V POE adapter(EU/UK/US/AU plug available)
1* User Manual
