Computer Hot Seller Peripheral Component Parts provide Networking Tools,Networking Device,Game Console Big Clearance MINI-ITX Industrial Motherboard itx-m847_z10 Integrated Intel 1037U/1.80GHz dual core Processor/TDP 17W/4*USB2.0/1*VGA. Get Discount Now! Only US $108.32/piece at this time. Hurry buy Now before back to normal price! Normal price US $114.02 or you can Check price now. Dont waste your time. Buy Now only in YZLONG TECHLOGY CO.,LTD Trusted Seller Store!
No uncertainty, this is a real goods that gives lots of conveniences along with successful for you. Equally as you will get a fortune, this product is able to provide a car that has to be extremely intriguing for you. In choosing this Flash Deal Great Promotion Celeron intel 1037u processor dual core 22nm processor industrial embedded MINI_ITX motherboard ITX_M18_ A6 with 8*USB/2*COM item, you could do various factors to consider that are provided in the catalog. The item magazine you get is absolutely provide a recommendation for those of you that intend to discover the product you want.
ITX-M847_Z10 VER:1.2
MINI-ITX Industrial Motherboard itx-m847_z10 Integrated Intel®1037U/1.80GHz dual core Processor/TDP 17W/4*USB2.0/1*VGA

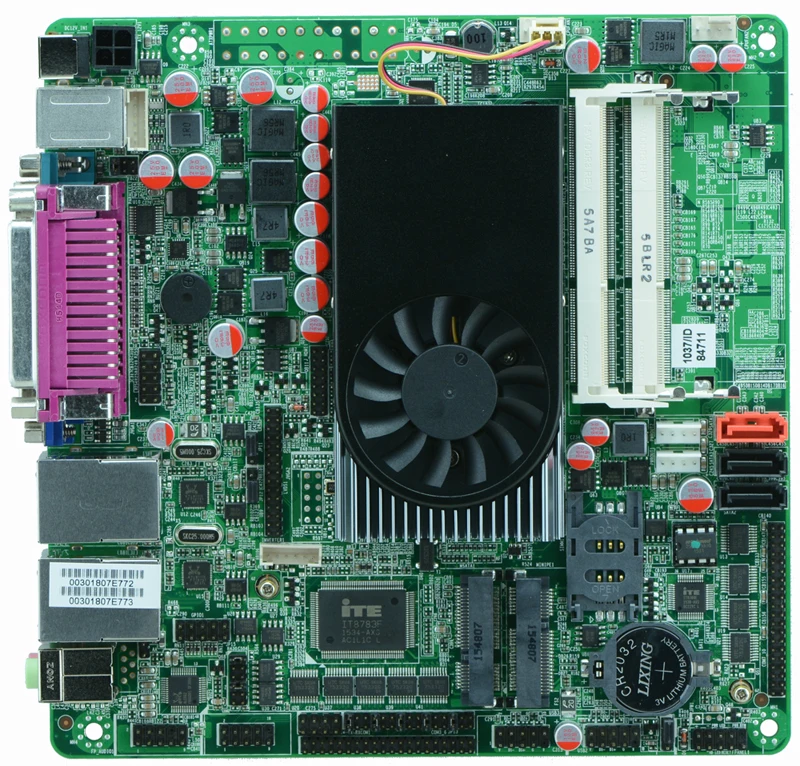

pictures of product
Integrated Intel®HD Graphics graphic card | |
Support 1*VGA,1*HDMI,1*LVDS (support dual channel 24BIT) | |
Support VGA;HDMI;LVDS support synchronous/asynchronous display | |
LAN | 2* RTL8111E gigabit LAN controller,,support wake on LAN /PXE function |
Storage | 3* SATAII ,transfer rate up to 3Gbps |
Audio | Inboard ALC662 6 channel HD audio controller ,support MIC/Line-out |
Expansion Slot | 1* MINIPCIE slot,support WIFI/3G module |
1* MSATA slot,support SSD,SSD transfer rate up to 6Gbps | |
Back Panel I/O Port | 1* 12V DC_JACK input |
1* PS/2 | |
1* DB9 COM,the 9th PIN with charged function | |
1* VGA | |
1* LPT | |
4* USB2.0 | |
2* RJ-45 LAN port | |
1* Audio (Line out / MIC) | |
Internal I/O | 1* LVDS (2*15pin), support dual channel 24BIT LCD display |
1* LVDS INVERTER (1*6pin) | |
1* JVGA1 (2*5pin) same signal with DB15 | |
9* COM(COM2 is 2*5pin ; COM3~6 connector is 2*20pin header,COM7~10 is 2*20pin ) | |
COM2 COM3 support RS485/RS422 | |
4* USB2.0 | |
1* PS/2 KB/MS (1*6Pin) | |
1* AUDIO front panel connector (2*5pin) | |
1* SIM slot | |
1* front panel function buttons and indicator connector (2*5pin) | |
1* 4pin ATX 12V input/output power connector | |
Fan | 2* CPU FAN 4pin |
GPIO | Support 4-Way GPIO function |
BIOS | AMI 32Mb Flash ROM |
Watch Dog | Support hardware reset function (L256,0~255 seconds) |
Power | DC_12V single power input |
Operating Temp. | -10~60 |
Storage Temp. | -20~70 |
Humidity | 5%-95% ( Relative humidity ,non-condensing ) |
Size | 170mm x 170mm |
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Big Clearance MINI-ITX Industrial Motherboard itx-m847_z10 Integrated Intel 1037U/1.80GHz dual core Processor/TDP 17W/4*USB2.0/1*VGA
