Computer Hot Seller Peripheral Component Parts provide Game Console,Keyboard,Component Parts Cool Promotion LCD controller board with VGA input signal work for 14.1inch~17inch lcd display. Price at this time US $25.35/piece. Check price now to get discount! Dont waste your time. Buy Now only in VS DISPLAY's store Trusted Seller Store!
Notice: Please give me your LCD Panel Mode No. when you buy this item
Description:
1.VGA input 2.Power supply 3.Inverter 4.LCD Voltage Jumper 5.KeyBoard 6.LVDS interface
Please check your lcd screens operating voltage and make sure the board was set correct:
Jumper: CN9 PIN 2 PIN3 3.3V
Jumper: CN9 PIN 1 PIN2 5.0V
Jumper: CN7 PIN 1 PIN2 12.0V
| Chipset | RTD2025L |
| Panel interface | Double LVDS |
| Resolutions | 1440*900 |
| Power supply | 12V |
| Voltage to panel | +3.3V/5V/12V |
| Standby | <1W |
| Input signal | VGA |
| OSD language | Chinese/English/French/Germany/Korean…(customizable) |
| keyBoard | Power,Menu,+/-,Auto/EXIT |
Note:
Can work with below model:
| B150PG03_V0 | LP141WP1 | LP171WP4(TL)(B4) | LQ170M1LA2A | LTN154P3-L01 |
| B150PN01 | LP150E02(A2)(P1) | LP171WP4(TL)(B5) | LQ170M1LA3C | LTN154U1-L01 |
| B154PW01 | LP150E06 | LP171WP4(TL)(N2) | LQ170M1LA4B | LTN154U1-L02 |
| B154SW01 | LP150E06 (A3)(K2) | LP171WP4(TL)(R2) | LQ170M1LA4G | LTN154U2-L04 |
| B170PW01 | LP150E07 | LP171WP4-TLN1 | LTD121KM2M | LTN154U2-L06 |
| B170PW02 | LP150U03(A2)(P1) | LP171WU1 | LTD141EM6K | LTN154WU1-A1 |
| B170PW03 | LP150U1 | LP171WU1(A4)(K2) | LTD154EZ0D | LTN170CT01-001 |
| B170PW04 | LP150U1-A2 | LP171WU1(A4)(K5) | LTN106W1-L01 | LTN170U1-L01 |
| B170PW05 | LP150X08-A2 | LP171WU1(TL)(A2) | LTN141P2-L01 | LTN170WP-L02 |
| B170PW06 | LP154WP1 | LP171WU1(TL)(A5) | LTN141P4-L01 | LTN170WU-L01 |
| B170UW01 | LP154WU1 (A1) | LP171WU1(TL)(B2) | LTN141P4-L04 | LTN170WU-L02 |
| B170UW02 | LP154WU1(A1)(K2) | LP171WU1-TLA8 | LTN141WD-L01 | LTN170WX-L01 |
| CLAA150PB0B03A | LP154WU1(A1)(K2) | LP171WU3-TLA1 | LTN141WD-L07 | LTN170WX-L03 |
| HSD150PK14-A00 | LP154WU1(A1)(K3) | LP171WX2 | LTN141WD-L07 (B) | LTN170WX-L05 |
| HSD170MGW1-A00 | LP154WU1(TL)(A1) | LP171WX2(A4) | LTN150P2-L01 | LTN170WX-L08 |
| HT14P12-100 | LP154WU1(TL)(A2) | LP171WX2(A4)(K1) | LTN150P2-L03 | LTN170X2-L02 |
| HV150UX1-100 | LP154WU1(TL)(B1) | LP171WX2(A4)(K9) | LTN150P3-L01 | LTN190W1 |
| HV150UX1-101 | LP154WU2(TL)(A2) | LP171WX2(TL)(A2) | LTN150P4-L02 | N150P3-L01 |
| HV150UX1-L01 | LP171W01 | LP171WX2(TL)(A3) | LTN150PE-L01 | N150U3-L01 |
| IASX12S | LP171W01(A4) | LQ150U1LA03 | LTN150PF-L04 | N154Z1-L02 |
| IAUX14 | LP171W01(A4)(K1) | LQ150U1LH22 | LTN150PG-L02 | N170C2-L01 |
| IAUX14P | LP171WP4 | LQ150U1LW03 | LTN150PG-L03 | N170C2-L02 |
| IAUX14S | LP171WP4(TL)(02) | LQ150U1LW22 | LTN154P1-L02 | QD17TL02 |
| ITSX95C | LP171WP4(TL)(03) | LQ154M1LW02 | LTN154P1-L03 | TX41D56VC1CAA |
| ITSX95E | LP171WP4(TL)(B1) | LQ154M1LW12 | LTN154P1-L04 | TX41D97VC1GAA |
| ITUX97H | LP171WP4(TL)(B3) | LQ170M1LA04 |
PS: Not included all of model ,Other model please contact us or leave a message.

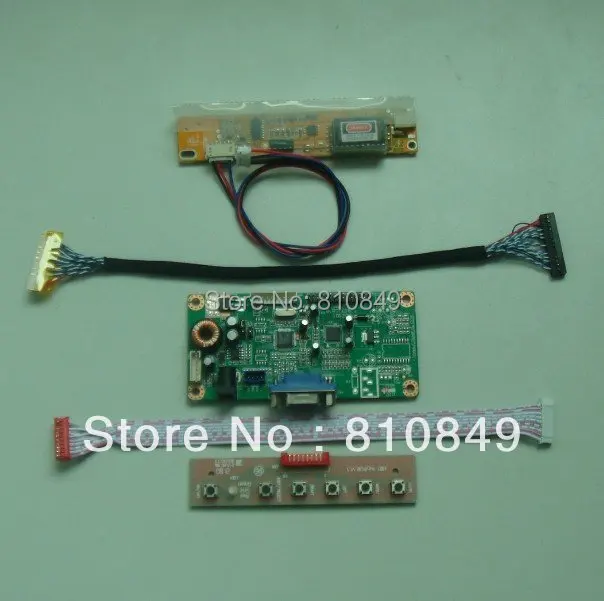

Package content:
1× New VGA Controller Board B.RTMC1B-A
1× LVDS Cable FIX-30P Double 6bit LVDS
1× Inverter Board(1-lamp 2-lamp or 4-lamp depend on your lcd panel)
1×Keyboard with Wire
