R100 industrial 3g VPN wifi router with Sim card slot Ethernet port
Overview
R100 series is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc. Software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+ options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the R100 is a convenient yet reliable solution for any industrial wireless applications.
Application
Benifits
• Advanced Failover: Maximize uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM).
• Multiple Tunneling Schemes: Secure your data using a variety of VPN tunneling schemes, including IPSec, L2TP, PPTP, OpenVPN and GRE.
• Flexible Wi-Fi: 802.11 b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID.
• Ethernet, serial and I/O for connecting diverse field assets.
• Remote Management provides mass configuration, device management, OTA update, and troubleshooting tools
Frequency:
WCDMA:900/2100MHZ, 850/900/1900/2100(optional)
-- GSM/GPRS/EDGE: 850/900/1800/1900
• Automatic SIM based network operator switching
Host Interface:
• 10/100 Base-T RJ45 Ethernet port
• RS-232 or RS-485 Serial Console Port
• 3 SMA antenna connectors (WI-FI and Double-cellular)
• Active GPS/ZigBee antenna support (option)
• (6) pin 3.5mm terminal block
Input/outpoot:
• (6) pin 3.5mm terminal block.
• (2) DI, (1) DO, (1) Relay.
• Input ON Voltage: 5 to 30 VDC.
• Input OFF Voltage: 0 to 3 VDC.
• Output < 50mA @ 30VDC
Lan:
• DNS, DNS Proxy
• DHCP Server
• IP Passthrough (option)
• VLAN
• Host Interface Watchdog
• PPPoE
Serial:
• TCP/UDP PAD Mode
• Modbus (ASCII, DTU, Variable)
• PPP
• Reverse Telnet
Event Engine(optional):
Custom event triggers and reports.
• Configurable interface, no programming.
• Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature.
• Report Types: TCP, UDP, SMS, SNMP Trap, HTTP, JSON.
• Event Actions: Drive Relay Output.
WIFI:
• IEEE802.11 b/g/n, AP and client mode.
• Adjustable output power (Max: 26dBm)
• Access point for up to 30 clients
• Simultaneous access point/client mode
• WEP, WPA-PSK, WPA2-PSK etc. Security
Network and routing
:• Network Address Translation (NAT)
• Port Forwarding
• Host Port Routing
• VRRP
• Reliable Static Route
• Dynamic DNS
VPN:
• IPSec, GRE, and OPENVPN Client
• Up to 10 concurrent tunnels
• Split Tunnel
• Dead Peer Detection (DPD)
• Multiple Subnets
• VPN Failover
Security:
• Remote Authentication
• DMZ
• Inbound and Outbound Port filtering
• Inbound and Outbound Trusted IP
• MAC Address Filtering.
GPS(optional)
• Antenna Interface: SMA Female, 50 ohms impedance
• Tracking Sensitivity: better than -144 dBm
• Horizontal position accuracy: 2.5 m
• Time-To-First-Fix: 29 s
• Protocol: NMEA-0183 V2.3
Operation environment
• Operating Temperature: -35°C to +75°C / -31°F to +167°F
• Storage Temperature: -40°C to 85°C / -40°F to 185°F
• Humidity: 90% RH @ 60°C
Management service
• Secure cloud-based device management application
• Remote provisioning
• Gateway configuration and template management
• Configurable monitoring and alerting
• Software and radio module firmware updates
• Auto configuration
Dimension:
• Housing & Weight: Metal, 520g
• Dimension: (L x W x H): 133 x 115.7 x 45 mm
• Installation: 34.6 mm Din-Rail or wall mounting or desktop
Management interfaces
Web-Based User Interface
• Device Configuration Templates
• Software and radio module firmware updates
• AT Command Line Interface (Telnet/SSH/Serial)
• SMS Commands (Option)
• SNMP
Selection and Ordering Data
| Model No | Description |
| R100-W | Cellular (WCDMA/HSDPA/HSUPA/HSPA+), WI-FI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| R100-FL | Cellular (LTE/EV-DO), WI-FI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| R100-L | Cellular (LTE/WCDMA), WI-FI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| R100-W/W | Cellular (WCDMA/HSDPA/HSUPA/HSPA+, Dual-Module), WI-FI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| R100-FL-FL | Cellular (LTE/EV-DO, Dual-Module), WI-FI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| R100-L/L | Cellular (LTE/WCDMA, Dual-Module), WI-FI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |

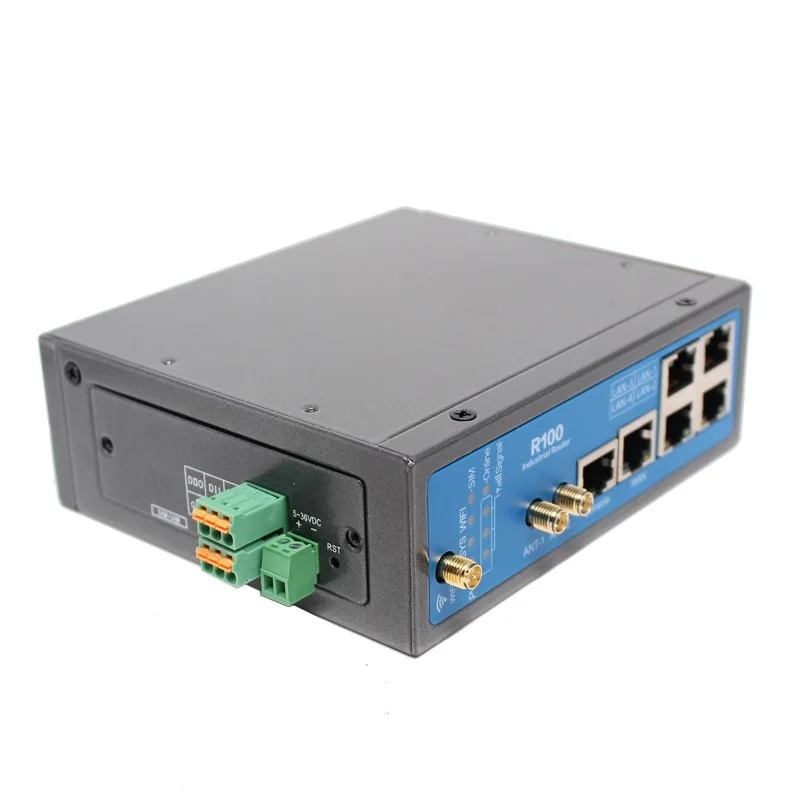

Picture:
