Big Stock New CubieAIO S700 Board open source All In One Mini embedded computer Android Linux UART x4 USB x6 64Bit CPU, ARM DEMO BOARD

Big Stock New CubieAIO S700 Board open source All In One Mini embedded computer Android Linux UART x4 USB x6 64Bit CPU, ARM DEMO BOARD computers hot seller Rating: 4.5 out of 5

Computer Hot Seller Peripheral Component Parts provide Fan Cooler,Networking Device Big Stock New CubieAIO S700 Board open source All In One Mini embedded computer Android Linux UART x4 USB x6 64Bit CPU, ARM DEMO BOARD. Price at this time US $139.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in SmartFly Tech CO.,Ltd. Trusted Seller Store!

The only issue that most individuals see in this goods is that it has an extremely high rate compared with various other goods. People state that it is only couple of and also very costly individuals could manage this item. Well they are partially true concerning the price of the product yet what they don't understand is that this Discount Big Stock New CubieAIO S700 Board open source All In One Mini embedded computer Android Linux UART x4 USB x6 64Bit CPU, ARM DEMO BOARD goods is made with the finest materials and with the very best top quality this is why it has a higher rate compared to others.

Note:Buy 4G module for this board,

Related Products:

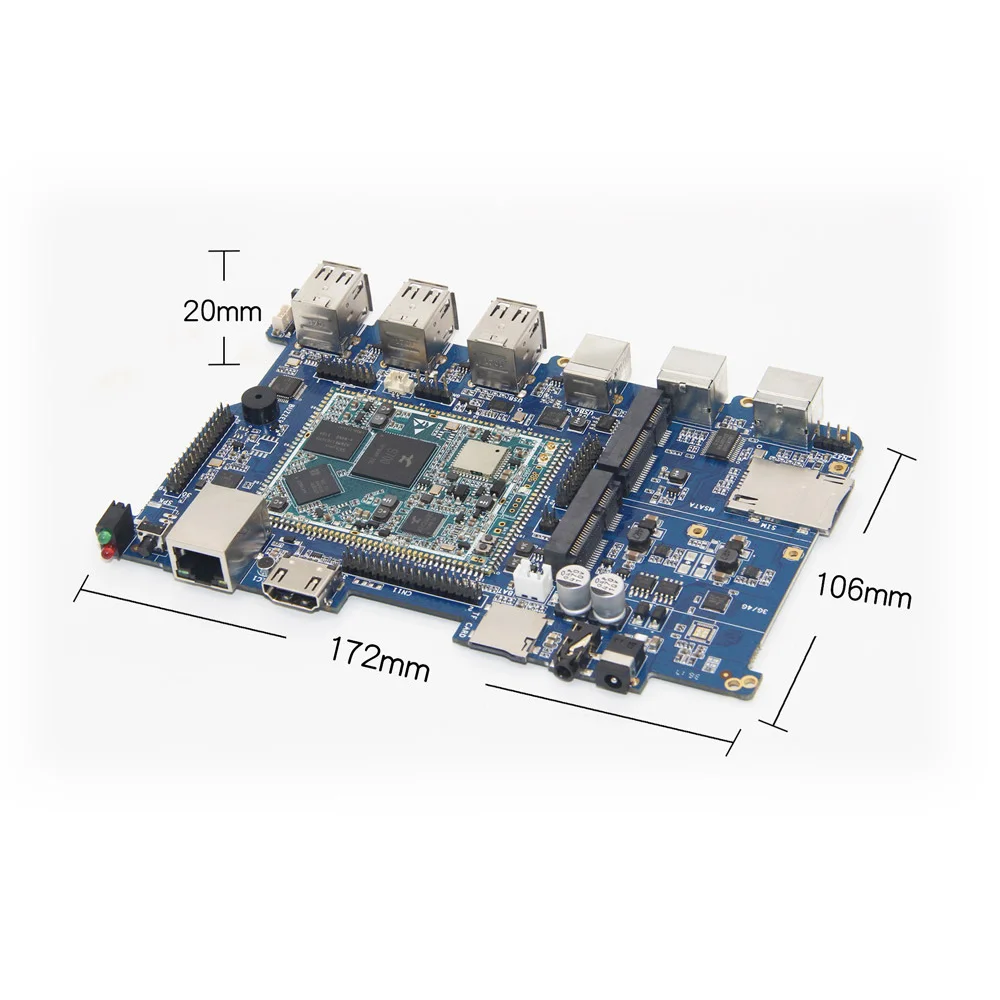

CubieAIO-S700 is open source All In One Mini embedded computer especially targets many Android & Linux industry applications. This device integrates all the computer’s features and interfaces in a very small size, even including host, display and touch panel. It can be used as an end product for a lot of computing and controlling applications across all industries. Because of its open source strategy, people can use it as a development board, get all the source code, documents, and also can discuss the technical issues in the forums. But beyond that, most of the innovative projects can be easily achieved based on it, since CubieAIO-S700’s main board is designed with a small computing module which named Einstein-S700 SOM. Einstein-S700 is a independent marketable product in CubieTech company, to this point, CubieAIO-S700 is actually a official design example for the computing module users. We hope the developers to list their products in short time with the aid of this design solution.

· SOC:Actions SOC S700，ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU

· 2GB DDR3

· HDMI&VGA 1080P@60Hz display output

· 10/100M/1000M Ethernet RJ45

· Wifi+BT 4.0 wireless connection with external antenna

· SATA 2.0 interface support MSATA

· Support 3G/4G miniPCIE module with data communication

· Storage solution：8GB emmc (default)

· 6 x USB HOST, 1 x OTG, 1 x Toslink (SPDIF Optical), 1 x IR, 2 x LEDs, 1 x Headphone and Micin jack, 3 x Keys

· Power：DC5V @ 4A, support Real Time Clock battery

· 54 extended pins including UART, LineIN, MicIn, PWM, Low Resolution ADC, SPI, I2C, LCD, GPIO, CCIR656, MIPI_CSI, I2S…

CubieBoard is open source hardware which is easy to use open source hardware/development board that suit for Students, Developers, Geeks, Makers…The design intention is not only easy to develop, but also easy to use. CubieAIO-S700 is the 4rd type product in Cubieboard series from Cubietech Limited company. During operating period of Cubieboard2 and CubieBoard3, we found that S700 of Actions chipset is really a very good SOC for open source hardware and development board requirements. So we decided to design a new board form for providing more powerful features, more convenient mass production and more effective terminal use. CubieAIO-S700 is a new board model adopts with Actions SOC S700 and based on core-board structure. The core-board is named Einstein-S700 and can be sold individually. It’s a very easy to use and low cost product. In order to make it’s clear to use, we decided to make a full-scale application design example for it. So that the users no longer need to read too many documents. If they have project and decide to choose Einstein-S700 module, most of the project features are all ready and just do some cutting works. So the project listing time will become very short.

Besides that, we also reserve lots of expansion ports and pins on CubieAIO-S700, such as SPI, I2C MIPI, I2S, UART, PWM, ADC, CCIR656 and GPIO. The powerful expansion capacity makes the CubieAIO-S700 a excellent development board. The new features can be easily to achieved, new devices and modules can be driven up. So we can say CubieAIO-S700 is also incubation platform for innovative works.

Thirdly, since low cost, low power, high stability and flexible customization properties of embedded system, the X86 computers used in many industries tend to be replaced by embedded computer. CubieAIO is a very good choice in numerous embedded because of the firm and durable metal case, host & display all-in-one design structure. We believe that CubieAIO-S700 will simplify many managing and controlling applications in various industries. Those are CubieAIO’s product design motivations.

The CubieAIO-S700 device contains a CubieAIO-S700 main board, a 5V@4A wall adapter, a Type-B USB device cable, a telescopic antenna for Wifi & Bluetooth, and connector terminals for expanding the UART and GPIO signals.

CubieAIO-S700 integrates 7 inch LCD display with 1024*600 pixels and the matching touch panel. So in the most application occasions, we don’t need to connect a display any more, it will save a significant cost and also save lots of space.

It has 6 USB host ports, 1 USB OTG port, 1 earphone & Micin port, a micro SD card slot, HDMI display port, a 100/1000M RJ45 port, a IR receiver sensor, two onboard Leds, a buzzer for abnormal reminder. It supports 3G/4G mini-PCIE data communication module. Since the onboard mini-PCIE SATA port, CubieAIO-A20 supports MSATA SSD for storage capacity expansion. The board includes 3 keys for power On/Off, Reset and Reflash the ROM/image. Beside those, CubieAIO-S700 also has lots of expansion Pins for development, so it a very good development board as well for some unknown features.

It is a famous open source hardware. Many open source organizations will support CubieAIO-S700, such as Android, Unbuntu, Fedora, Dabian, openWrt and so on.

CubieAIO-S700 is not only for development, but also can be used in various areas like other Mini Pc products. Thanks to its rich interfaces, low costs, and good open source support ambient, more and more developers can benefit based on it and would like to do lots of promotion work for it.

It’s famous open source hardware, Cubietech official team will continully maintain Android, Debian, and Debian Server operating systems. Many other open source distribution would support it as well.

Android

Linux

Technical Website:http://cubieboard.org/

Resources Download in China:http://pan.baidu.com/s/1bppHqwf?errno=0&errmsg=Auth%20Login%20Sucess&&bduss=&ssnerror=0#list/path=%2FCubie_Download_CN%2FBoard%2FCubieBoard7

Expert Support: firefly@ smartfire.cn Skype: smartfire_cn

Product Customization: firefly@ smartfire.cn

Custom development services(bulk order): fly@ cubietech.com
