Computer Hot Seller Peripheral Component Parts provide Networking Tools,computers hot seller,Disk Storage Hot Flash Deal Embedded industrial computer mini all in one PC with j1900 quad-core processor fanless cooling. Price at this time US $360.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!
Economical cost and also totally free delivery. Allow's buy before rates increase.

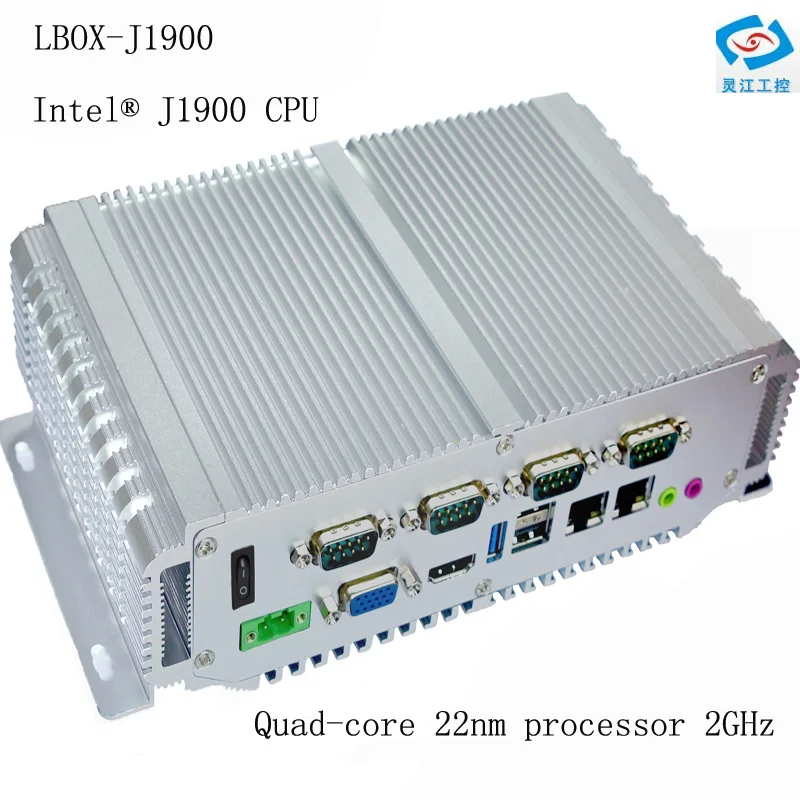

Embedded industrial computer mini all in one PC with j1900 quad-core processor fanless cooling
Product Specifications: Processor: Integrated Intel® J1900 Quad Core 22nm Processor 2GHz Power Consumption 10W Chipset: Uses the Intel® Bay trail SOC chipset Memory: Onboard 2GB high-speed memory + 1 DDR3 notebook expansion memory slot (maximum support 8G) Display: Integrated Intel® HD Graphics core graphics card (1 VGA, HDMI, dual 24-bit LVDS interface) Expansion: 2 * Mini PCI-e slot with SIM card slot (support WIFI / 3G module) Network: 2 * Gigabit Ethernet card (support network wakeup, PXE function) Storage: 1 * SATA II hard disk interface, 1 * MSATA slot, transmission speed up to 6Gbps Audio: Onboard ALC662 6-channel Hi-Fi audio controller, supports MIC, Line-out I / O interface: 1 * DC wide voltage input 9 ~ 25V, 1 * HDMI + VGA 2 * RJ-45 network interface, 5 * USB (4 2.0, 1 3.0) 1 * Audio ,1 * PS2 mouse and keyboard interface (KB / MS2 optional) 4 * serial port (COM1 support RS232, RS422,485 mode) 1 * AUDIO front panel audio interface GPIO: Supports 4 inputs and outputs GPIO BIOS: AMI 32MB Flash ROM Watchdog: 256, 0 ~ 255 seconds Power supply type: DC single power input 9 ~ 25V wide voltage Working temperature: -40 ℃ ~ +80 ℃ Storage temperature: -40 ℃ ~ +85 ℃ Working humidity: 5% -95% relative humidity, no condensationOperating system: win7, win8, Linux and other systems
Feature:
Wide Operating Temperature( -40 ~ 80°C), ambient w/ air flow )
Ultra Low Power and Fanless Design
Support RS232 Auto-low Function
Support One VAG/HDMI Outputs
Support Fast Slot
Support Optional WIFI Connection
Wide Range DC Power Input
Rugged Design for Shock/Vibration Protectio
Easy Installation/Maintenance
Intel SATA SSD Compatible
| USB | 4*USB 2.0 1*USB 3.0 |
Watchdog Timer | 1~256 levels |
I/O Connectors | |
Front Side I/O | 2 x USB 2.0 Type-A Receptacle 1Mic-in/1Line-out 1 x Power/HDD LED 1 x Power Reset Button 1 x Power on Button 1*GPIO |
Back Side I/O | 2 x LAN, RJ-45 ports for Gigabit Ethernet 1 x VGA female connector for Digital Video Output 1 x HDMI 4 x RS232 1 x USB 3.0 2*USB 2.0 1 x Power Input DC 9-25 V input (w/ 1 x 4-pin DC input terminal block) 4 x COM with DB-9 pin connector |
Mechanical and Environment | |
Dimensions (L x W) | 220mm (W) x 160mm (D) x 75 mm |
Color | S:White |
Construction | Aluminum housing / Metal |
Power Input | DC 9-25 V input (w/ 1 x 4-pin DC input terminal block) |
Net Weight (kg) | 4.0KG |
Company profile:
ShenZhen Ling Jiang Computer Technology CO.,LTD was established in 2002.
We are specialized in Researching,Designing,Manufacturing,Assembing and exporting industrial computers.Our main lines of products are:Industrial Embedded PC;Industrial Panel PC;Industrial Motherboard of PC;Industrial Full Size Card;Firewall Machine and so on.
We are well recognized and accepted by a growing number of clients.We are always ready for new friends and new business opportunities.Looking forward to a higher level of involvement and the support of business partners to work together for a better tomorrow!
Warranty&FeedbacK:
1. 12 months warranty,dont worry.
2. If the product is defective ,please notice us within 3 days.After received.please don’t open dispute without communication.
3. If you are not satisfied our products,please return it within 7 days for a replacement or request refund, please contact with us before return.BTW, when the product return to us, Please charge the shipping fees by yourself.
4. All the products are tested 100% original new and tested well before shipment.
5. Your satisfaction and positive feedback is very important to us.Please leave a positive feedback or 5 stars if you are satisfied with our products and our service.
6. If you have any questions with our products and service,please feel free contact with us before you leave a negative feedback.We will do our best to solve any problems and provide our best service.
7. If the product is defective ,you can ship it back to us,we will ship a replacement to you when the returned one arrival to us.
All the email and message will be answered with 1 working day.
Application Range:
Mechanical automation, medical equipment, play games, POS machine, automatic service and intelligent retail,Mobile vehicle-mounted computer solution.
Return Policy
If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service
On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).Hot Flash Deal Embedded industrial computer mini all in one PC with j1900 quad-core processor fanless cooling
