Excellent Promotion 8.4inch Embedded Fanless Industrial 4-Wire China Resistive All In One PC For Factory Automation PPC-084P Upgrade

Excellent Promotion 8.4inch Embedded Fanless Industrial 4-Wire China Resistive All In One PC For Factory Automation PPC-084P Upgrade computers hot seller Rating: 4.2 out of 5

Computer Hot Seller Peripheral Component Parts provide Component Parts,Fan Cooler,Mouse Excellent Promotion 8.4inch Embedded Fanless Industrial 4-Wire China Resistive All In One PC For Factory Automation PPC-084P Upgrade. Price at this time US $349.97/piece. Check price now to get discount! Dont waste your time. Buy Now only in Trusted Seller Store!

Welcome To Shenzhen Ling Jiang Computer Technology Co., Ltd Store

Bulk Order !!!!!!!

More choose for you here!!!We are factory store.We also support wholesale price for large order.If you need.just contact with us.We can do for you.

8.4inch Embedded Fanless Industrial 4-Wire China Resistive All In One PC For Factory Automation PPC-084P Upgrade Orderssssssss!!!!!!​

Product Description 1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless 3G/WIFI for optional . 2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storge and other automation applications. 3.With 8.4inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard, support Windows XP(Pre-install), Windows XP/ win7/Win8/Win10/Linux system ,CF,HDD,SDD, multiple I/O interfaces. Features

Model Name	PPC-084P（Upgrade）
Display
Size	8.4"
Resolution	800×600
Brightness	300cd/m2
Contrast	300：1
Touch Screen	4-wire China resistive touch screen
LCD screen	industrial LCD display
System
CPU	Intel J1900 Quad Core 2GHZ，CPU Power Consumption 10W
Chipset	Intel Bay Trail SOC
Memory	RAM Onboard 4G DDR3 4G MAX 8G
Storage	SSD 32G（Up to 64G/128G/256G） Optional 2.5 Inch SATA HDD 320G/500G/1TB etc.
System	XP/Win7/Linux/Win8/Win10

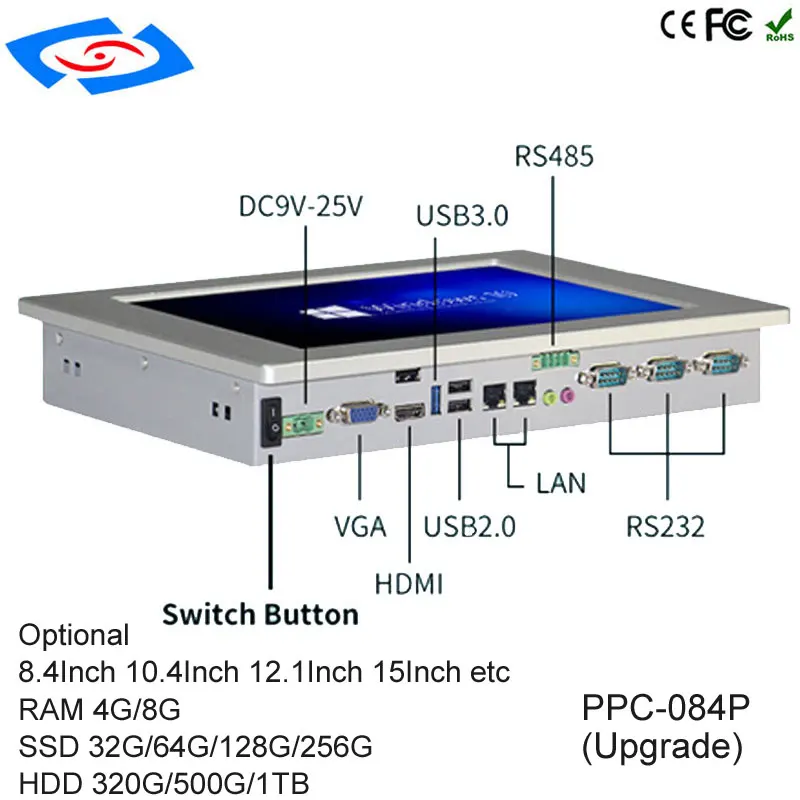

I/O
Lan	2×10/100/1000Mbps RJ LAN,Lan chip RTL8111E
Serial Port	COM1×RS485/RS422（default RS485 with Optical isolation ）, COM2-COM3×RS232/485（default RS232） COM4×RS232（optional add 2 RS232）
USB	2×USB2.0 1×USB3.0
Display	Integrated Intel HD Graphics，1×VGA、1×HDMI
Audio	Integrated ALC662, optional 1×MIC-in,1×Line-out/2W Built-in speaker
Others	1×GPIO（optional）, 1×LPT（optional）, 1×PS/2（optional）
Patulous Option	1×SIM，2×min-pcie(wifi/3G optional）
Watchdog Timer	1-255s，Programmable
Thermal methods	Fanless
Consumption	less than 15W
Working Temp.	-20℃-60℃，Humidity 5%-90%（Non-condensing）
Storage Temp.	-20℃-60℃，Humidity 5%-90%（Non-condensing）
Power	Wide voltage 9V～25V，12V/5A Power adapter
Switch ON/OFF	Switch
Shell Material	High-strength aluminum brushed pane;IP65；Spray painting
Color	Silver
Net Weight	2kg
Installation	Embedded mounted,VESA rack mounted
Dimensions(mm)	234.4×173.8×46.8
Hole size（mm）	218×151.5
Warranty
Warranty	12 months
Order information
Model Name	PPC-084P（Upgrade）
Standard	J1900 CPU 4G SSD 32G（XP） 800×600 3×USB 4×COM 2×LAN 1×VGA 1×HDMI
Accessories	12V/5A Power adapter，Power line，4 sets embedded Install button,RS485 connector
Optional	8G SSD 64G/128G/256G 3G/WIFIAUDIO/Built-in speaker etc.

Applicable scene

Application Range
Mechanical automation, medical equipment, play games, POS machine, automatic service and intelligent retail,Mobile vehicle-mounted computer solution

Packaging & Delivery

Packing detail: One pc in a gift box (L*W*H)353*279*45mm , 10 pc in a carto

Delivery: 3 days after payment
