Computer Hot Seller Peripheral Component Parts provide Game Console,Component Parts,Memory Cards Wonderful Deals MINI ITX Industrial mainboard ITX-M58_D52 D525 dual-core 1.8G Processor 1*VGA/LVDS 18 Bit /2*SATAII. Price at this time US $82.00/piece. Check price now to get discount! Dont waste your time. Buy Now only in INCTEL Technology Co.,Limited Trusted Seller Store!

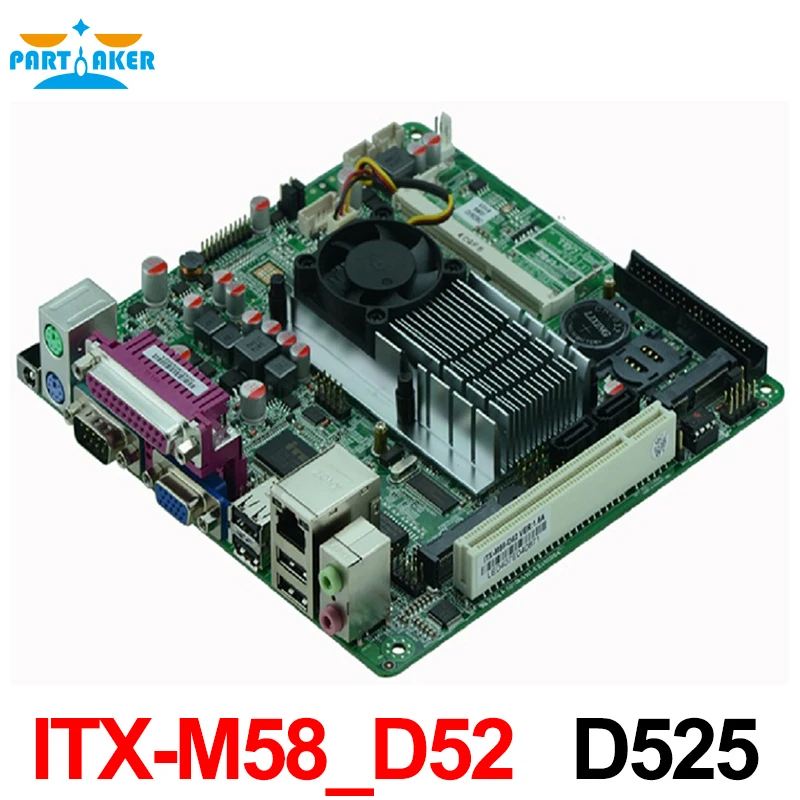

Cheap price with high quality industrial embedded MINI_ITX motherboard ITX_M58_D52 support Intel D525/1.80GHz dual core CPU
Model NO. | ITX-M58_D52 VER:1.1 |
CPU | Intel® Atom D525 Processor Dual core 1.80G |
Chipset | Intel® ICH8M Chipset |
Memory | 1* SO DIMM DDRIII 800/1066MHz, Max. up to 2GB |
Graphics | Intel® GMA3150 Graphics |
Support VGA/LVDS synchronous/asynchronous display | |
LVDS supports single 18bit | |
Expansion Slots | 1* Mini-PCIE (Support WIFI/3G) |
1* PCI | |
LAN | 1* RTL8105E 10/100Mbps Ethernet |
Support Wake-on-LAN and PXE function | |
Storage | 2* SATAII 3Gbps |
1* MSATA (support SSD 3Gbps/USB WIFI) | |
Audio | Integrated Realtek HD ALC662 for 6-Channel output |
Support MIC/Line-out/Line-in | |
Rear I/O | 1* 12V DC_JACK input |
1* PS/2 | |
1* LPT | |
1* COM, the 9th pin supports +5V/+12V charged function | |
1* VGA | |
4* USB 2.0 | |
1* RJ_45 LAN | |
1* AUDIO I/O (MIC and Line-out) | |
Internal I/O | 1* JVGA1 2*5pin |
1* LVDS 2*10pin | |
1* COM, the 9th pin supports +5V/+12V charged function | |
1* AUDIO pin (Front Audio interface 2*5pin) | |
4* USB 2.0 | |
1* FP1 (2*5pin Front panel buttons and LED connected) | |
1* PS/2 | |
1* LVDS 1*6pin | |
2* PWROUT (Hard drive power connector) | |
1* ATX_12V (Can be used as input and output 12V power connector) | |
1* SIM | |
Fun interface | 1* CPUFAN and SYSFAN 3pin |
BIOS | AMI 8MB DPI Flash ROM |
Watchdog | Support hardware reset function (L256, 0~255 seconds) |
Power Input | DC_12V Single power supply |
Operating Temp. | -10°C~60°C |
Storage Temp. | -20°C~70°C |
Humidity | 0%-95%(relative humidity; non-condensing) |
Dimension | 170mm x 170mm |
